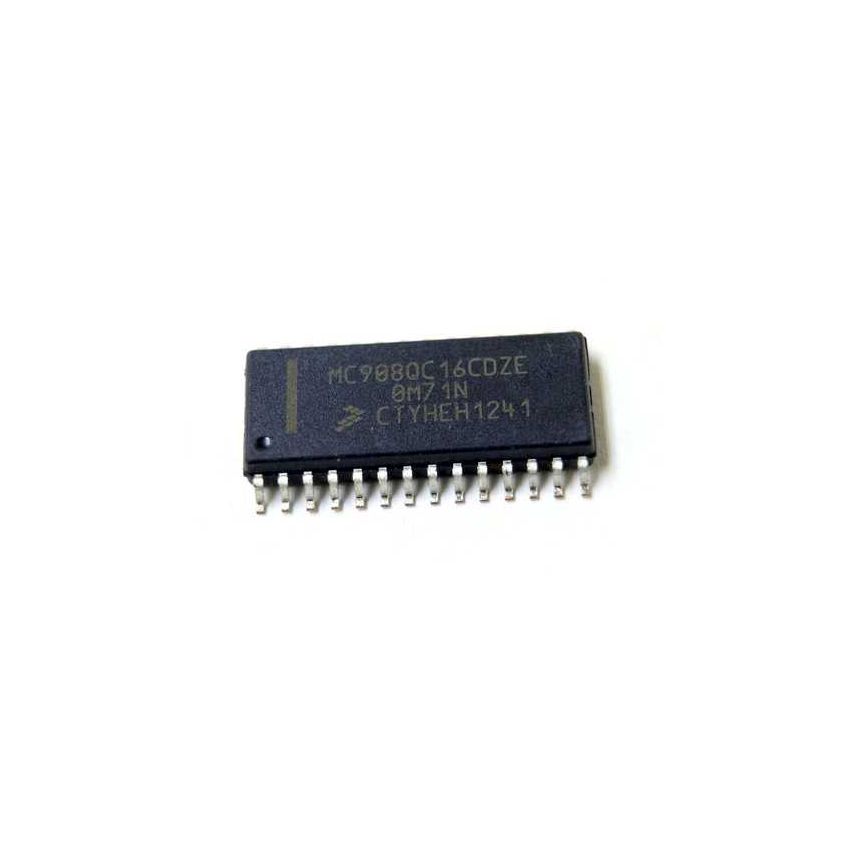

MC908QC16CDZE, 8-Bit Microcontroller, SOIC-28

The MC908QC16CDZE is a versatile 8-bit microcontroller from NXP Semiconductors, part of the HC08 family. It integrates a high-performance HC08 CPU core, 16KB of on-chip Flash memory, and 512 bytes of RAM, making it suitable for a wide range of embedded applications.

Equipped with a 10-bit Analog-to-Digital Converter (ADC), the microcontroller allows for accurate analog signal processing, essential for applications involving sensor data acquisition. The device offers 26 general-purpose I/O lines, providing flexibility in interfacing with various external components.

Designed with low power consumption in mind, the MC908QC16CDZE utilizes CMOS technology and includes multiple power-saving modes, making it ideal for battery-powered applications. The microcontroller operates at a maximum clock frequency of 8MHz and supports a supply voltage range of 4.5V to 5.5V.

The device is housed in a 28-pin Small Outline Integrated Circuit (SOIC) package, facilitating easy integration into space-constrained designs. Its combination of performance, memory capacity, and peripheral features makes it well-suited for applications such as consumer electronics, industrial control systems, and automotive applications.

• High-Performance 8-Bit HC08 CPU Core: Delivers efficient processing capabilities for a variety of embedded applications.
• 16KB On-Chip Flash Memory: Provides ample space for program storage with in-circuit reprogrammability.
• 512 Bytes of On-Chip RAM: Offers sufficient data storage for variables and stack operations.
• 10-Bit Analog-to-Digital Converter (ADC): Enables precise analog signal measurements for interfacing with sensors and other analog devices.
• 26 General-Purpose I/O Lines: Facilitates flexible interfacing with external peripherals and devices.
• Low Power Consumption: Designed with CMOS technology, featuring multiple power-saving modes to optimize energy efficiency.
