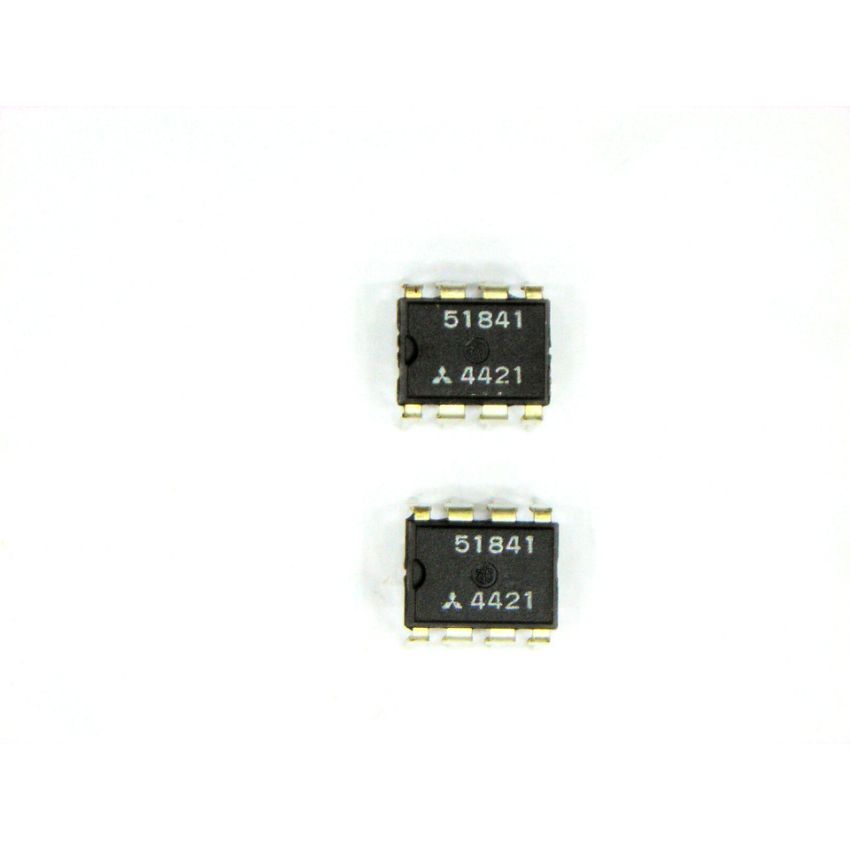

M51841P, Precision Timer IC, DIP-8

The M51841P is a monolithic timing circuit, designed for precision pulse generation and oscillation applications. It offers two primary operating modes:

• Monostable mode (one-shot timer), triggered by an external pulse, generating a fixed-duration output.
• Astable mode (oscillator), allowing continuous pulse generation with a stable frequency.

With an operating voltage range of 4.5V to 16V, the M51841P ensures compatibility with low-power and standard logic circuits. Its high output drive capability (200mA) allows it to directly interface with TTL logic and control relays, LEDs, and other external components. The circuit’s timing characteristics are set using external resistors and capacitors, enabling precise adjustment of pulse width and frequency. Packaged in a DIP-8 format, the M51841P is ideal for time delay circuits, pulse width modulation, frequency generation, and sequential timing applications.

• Versatile Timing Functions – Supports monostable (one-shot) and astable (oscillator) modes for flexible applications.
• Wide Operating Voltage Range – Operates between 4.5V and 16V, making it compatible with various circuits​
• High Output Drive Capability – Can source or sink up to 200mA, allowing direct control of TTL and other loads.
• Adjustable Duty Cycle and Timing – Uses external resistors and capacitors for precise timing adjustments.
• Fast Response and Low Power Consumption – Provides high-speed switching with low energy consumption.
• Standard DIP-8 Package – Compact and easy to integrate into PCB designs and breadboard prototyping.
