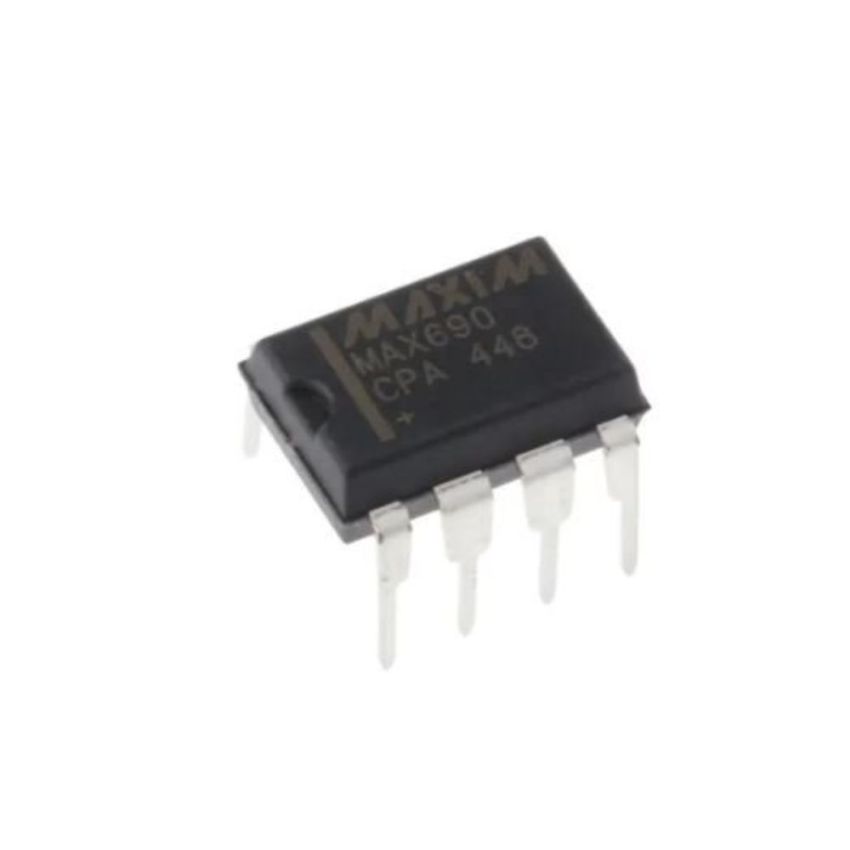

MAX690, Power Supply Supervisor IC, DIP-8

The MAX690 is a power supply supervisor IC designed to ensure microprocessor reliability by monitoring power supply voltages and generating reset signals when needed. Manufactured by Maxim Integrated, it is widely used in embedded systems, industrial controllers, and mission-critical applications.

Operating at 5V, the MAX690 provides low-power operation, making it ideal for battery-powered and energy-sensitive designs. It includes built-in reset circuitry that activates during low-voltage conditions, ensuring system stability and preventing unintended processor behavior.

The device also features a watchdog timer (WDT), which automatically resets the system if it becomes unresponsive, enhancing system reliability. Its DIP-8 package allows for easy integration into standard PCB designs.

• Microprocessor Supervisory Functionality: Ensures system reliability by monitoring power supply status.
• Integrated Reset Circuitry: Provides automatic reset generation during low-voltage conditions to protect microcontrollers and processors.
• Voltage Monitoring: Supports precise voltage threshold detection to avoid undesirable system behavior.
• Watchdog Timer (WDT): Resets the system if it fails to respond within a specified timeframe, preventing software crashes.
• Low Power Consumption: Optimized for energy-efficient operation in battery-powered applications.
• Standard DIP-8 Package: Compact and easy to integrate into embedded systems and industrial control boards.
