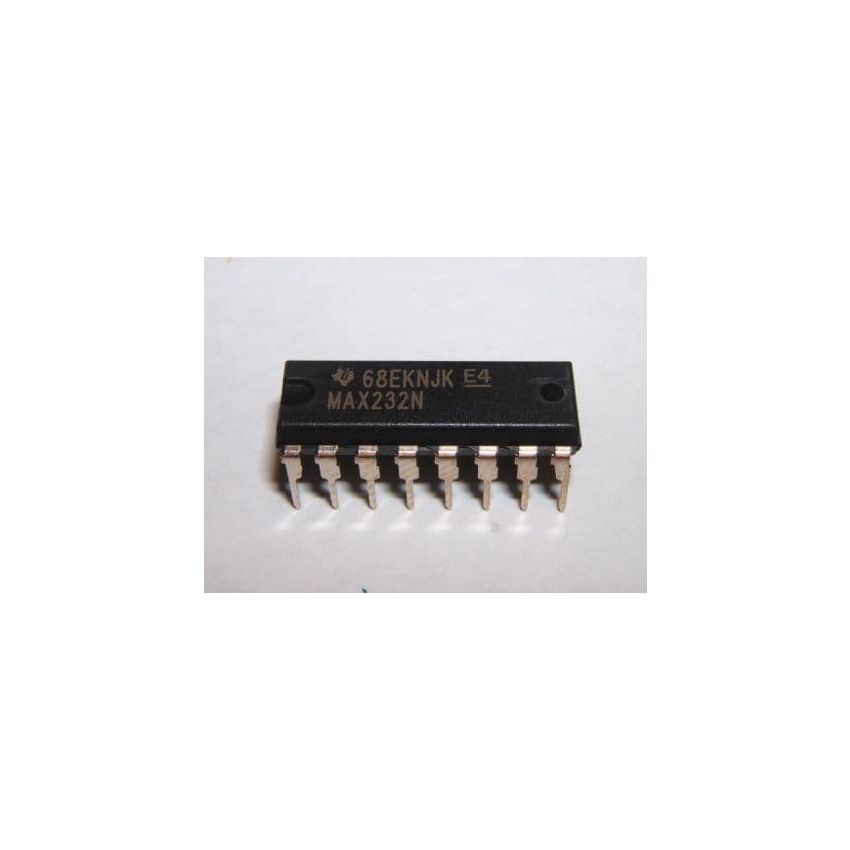

MAX232N, Dual RS-232 Driver/Receiver, 16-Pin DIP Package

The MAX232N is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5V supply. Each receiver converts TIA/EIA-232-F inputs to 5V TTL/CMOS levels. These receivers have a typical threshold of 1.3V and a typical hysteresis of 0.5V. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels. The device requires four external 1 uF capacitors for the internal charge pump. It is commonly used in applications such as TIA/EIA-232-F interfaces, battery-powered systems, terminals, modems, and computers.

• Dual Driver/Receiver – Provides two drivers and two receivers for RS-232 communication.
• Single 5V Power Supply – Operates from a single 5V supply, simplifying power requirements.
• Integrated Charge Pump – Eliminates the need for dual power supplies by generating necessary voltage levels internally.
• High Data Rate – Supports data rates up to 120 kbps, suitable for various serial communication applications.
• Low Power Consumption – Typical supply current of 8 mA, making it efficient for battery-powered devices.
• Standard 16-Pin DIP Package – Encased in a 16-pin Dual In-Line Package for easy integration into standard PCBs.
