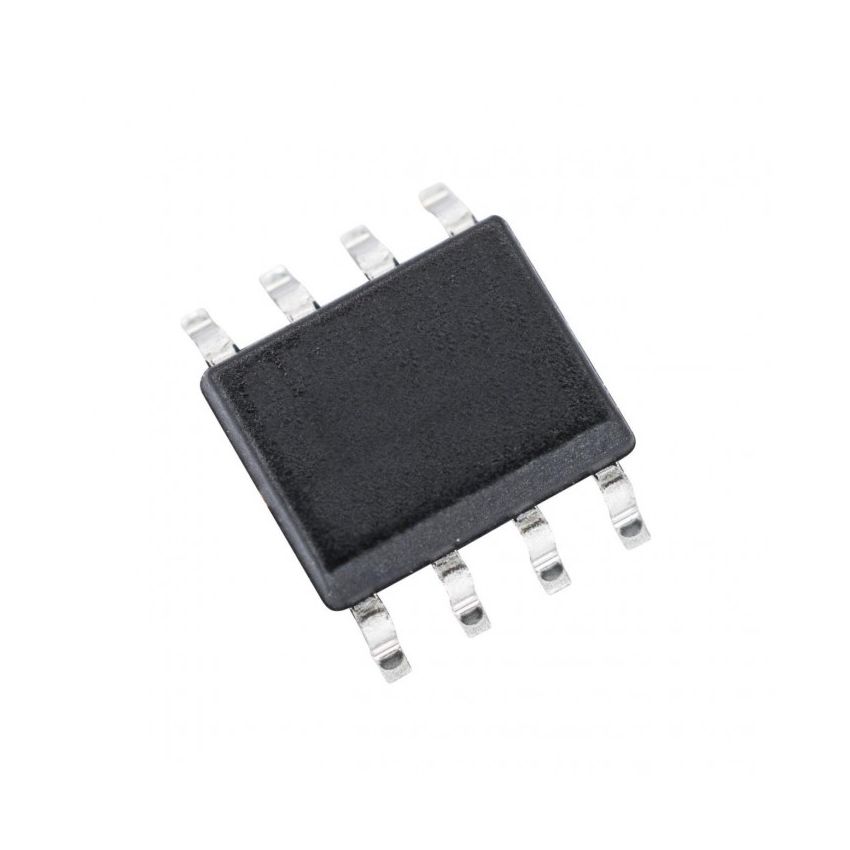

Si4450DY,N-Channel MOSFET,60V 7.5A

The Si4450DY is a high-efficiency N-Channel Power MOSFET designed for low-voltage switching applications. With a drain-source voltage rating of 60V and a continuous drain current of 7.5A, this MOSFET offers exceptional performance in compact SMD applications. The device features a low RDS(on) of 0.024Ohm at VGS = 10V, reducing power dissipation and enabling high efficiency in switching power supplies, motor control, and DC-DC converters.

The small SO-8 package ensures easy integration into high-density circuit designs, making it ideal for portable and space-constrained devices. Its TrenchFET technology ensures superior switching speed and energy efficiency.

Key Features :

• Voltage Rating: Drain-source voltage (VDS) up to 60V for safe operation in low-voltage circuits.
• Current Capacity: Continuous drain current of 7.5A at VGS = 10V
• Low RDS(on): 0.024Ohm at VGS = 10V minimizes conduction losses.
• High Switching Speed: Ideal for fast-switching applications like DC-DC converters and motor drivers.
• Compact Package: SO-8 package for space-constrained designs.
• Thermal Performance: Designed to operate at junction temperatures up to 150C.
