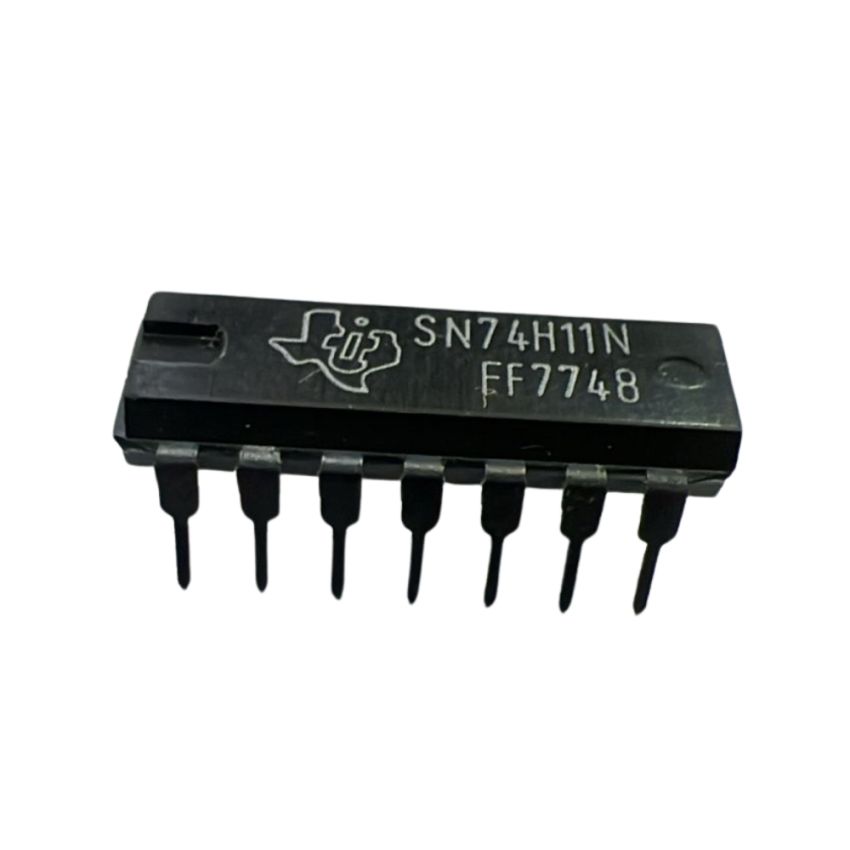

SN74H11N, Triple 3-Input AND Gate, PDIP-14 TTL-Compatible

The SN74H11N is a logic IC from Texas Instruments, implementing three separate 3-input AND gates in a PDIP-14 package. Each section outputs the logical AND of its three input signals. The device belongs to the TTL/H/L series and offers direct compatibility with TTL logic levels, delivering a robust solution for logic operations in various digital systems. It is a legacy (discontinued) component but still sought for maintenance of older equipment.

Key Features:

• Triple 3-Input AND Gates – Three independent logic AND gates, each with three inputs.
• TTL/H/L Series – Compatible with TTL logic families, ensuring ease of integration.
•
  Standard 14-Pin DIP Package – PDIP-14 form factor for easy prototyping and breadboard use.
•
  Discontinued Part – No longer actively produced; may require sourcing through surplus or secondary markets.
•
  Broad Voltage Tolerance – While specific H/L series range isn’t specified, HC equivalent supports 2 V to 6 V operation.
•
  Versatile Logic Integration – Outputs directly interface with CMOS, NMOS, and TTL inputs—making it flexible for mixed-logic designs.
