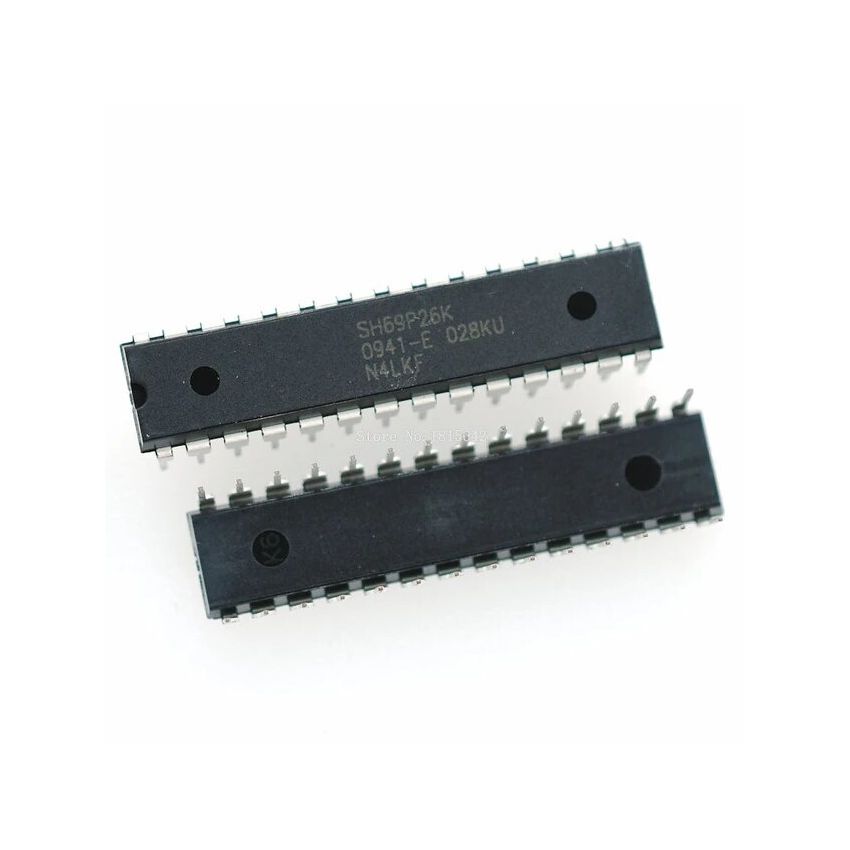

SH69P26K, 4-Bit Microcontroller, DIP-28

The SH69P26K is a single-chip 4-bit microcontroller designed for a variety of embedded applications. It integrates the SH6610D CPU core, providing efficient processing capabilities. With 6KB of One-Time Programmable Read-Only Memory (OTPROM), it allows for reliable code storage and flexibility in firmware development.

Equipped with 389 x 4-bit internal static RAM, the SH69P26K offers adequate data handling and temporary storage for various applications. Operating at frequencies up to 8MHz, it is suitable for low-power and cost-sensitive designs.

The microcontroller supports a wide operating voltage range of 2.4V to 5.5V, providing flexibility to accommodate different power requirements. Packaged in a DIP-28 form factor, it is designed for through-hole mounting, facilitating easy integration into standard PCB designs.

The SH69P26K is ideal for applications such as consumer electronics, home appliances, and other embedded systems that require a compact and efficient microcontroller solution.

• 4-Bit CMOS Microcontroller: Integrates the SH6610D CPU core for efficient processing.
• 6KB OTPROM: Provides 6,144 x 16-bit words of One-Time Programmable Read-Only Memory for code storage.
• 389 x 4-Bit RAM: Offers internal static RAM for data handling and temporary storage.
• Multiple Timer/Counters: Includes two 8-bit auto-reload timer/counters and one 16-bit timer/counter for pulse measurement.
• Flexible Oscillator Options: Supports various oscillator types, including crystal, ceramic resonator, external RC, internal RC, and external clock, with frequencies up to 8MHz.
• Low Power Operation Modes: Features HALT and STOP modes to optimize power consumption in battery-powered devices.
