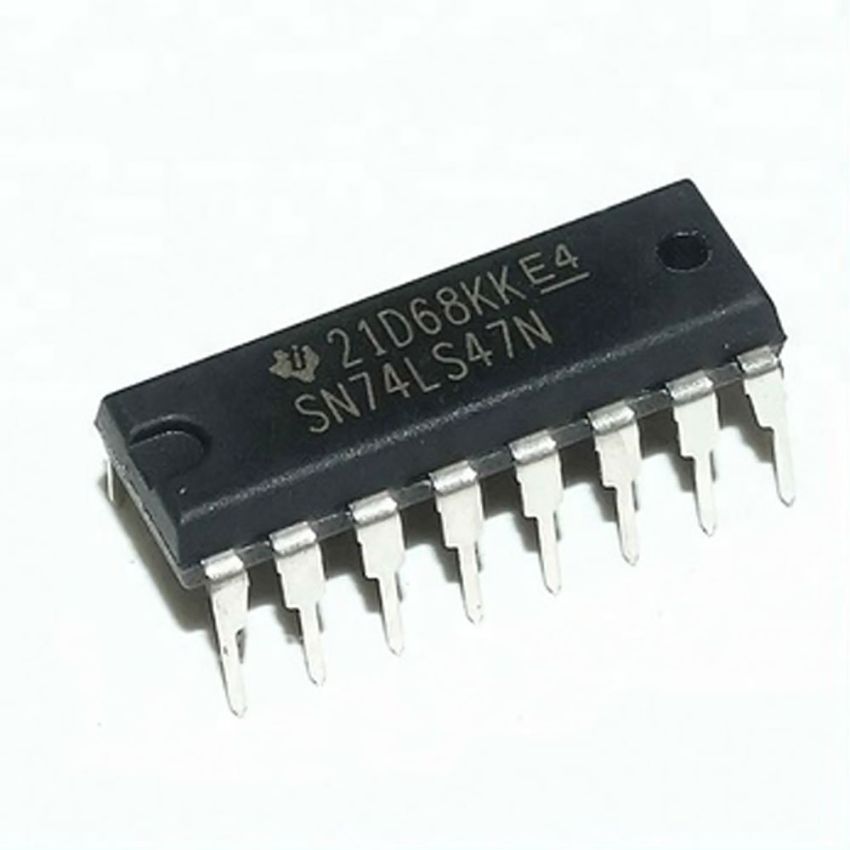

SN74LS47N,BCD to Seven-Segment Decoder/Driver, DIP-16,5V

The SN74LS47N is a BCD to seven-segment decoder/driver, designed for direct interface to LED displays. This integrated circuit simplifies the process of converting binary-coded decimal inputs into readable, seven-segment display outputs, providing clear and efficient display solutions for clocks, counters, and numerical displays. It features open-collector outputs, suitable for driving standard LED segments. With TTL-compatible inputs and a robust design, the SN74LS47N ensures reliable performance, even in demanding conditions. Its integrated pull-up resistors help reduce the need for additional components, making it a compact and effective solution for display driving applications.

• BCD to Seven-Segment Decoding - Converts binary-coded decimal (BCD) inputs to seven-segment display outputs.
• Open-Collector Outputs - Designed to interface with standard LED displays.
• Integrated Pull-Up Resistors - Ensures stable operation and minimizes the need for external components.
• Direct Drive Capability - Can directly drive seven-segment LED displays without requiring additional transistors.
• TTL-Compatible Inputs - Compatible with standard TTL voltage levels, ensuring easy integration.
• Low Power Consumption - Designed to operate efficiently, conserving energy in display circuits.
