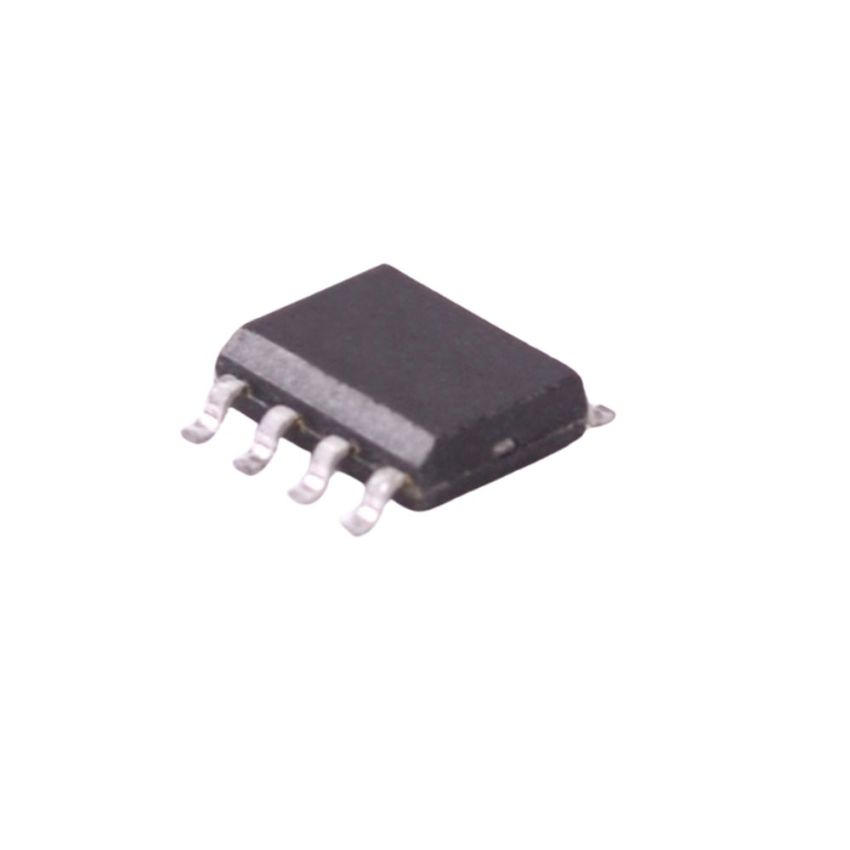

MC33153,Single IGBT Gate Driver, 1A Source2A Sink,10V-20V Supply

The MC33153 is a high-performance IGBT gate driver designed for high-power switching applications such as AC motor control, brushless DC motor drivers, and uninterruptible power supplies (UPS). It features a robust output stage, delivering 1A source and 2A sink currents, ensuring efficient gate charge and discharge for fast IGBT switching.

Operating at a voltage range of 10V to 20V, the MC33153 supports programmable fault blanking, overcurrent sensing, and desaturation protection, preventing damage in fault conditions. Additionally, the undervoltage lockout (UVLO) function safeguards against low voltage operation, enhancing system reliability.

With a fast propagation delay of 80ns, this driver ensures low switching losses, making it ideal for industrial automation, power electronics, and high-speed switching applications. Its compact DIP-8 and SOIC-8 package options enable easy integration into existing designs.

• High-Current Output Stage: Capable of 1A sourcing and 2A sinking, ensuring efficient gate control for IGBTs.
• Wide Operating Voltage Range: Functions within 10V to 20V, optimizing compatibility with power circuits.
• Advanced Protection Mechanisms: Includes overcurrent detection, desaturation protection, and undervoltage lockout.
• Fast Switching Performance: Provides 80ns propagation delay (typical), reducing switching losses.
• Programmable Fault Blanking Time: Prevents false triggering in power applications.
• Compact Packaging Options: Available in DIP-8 and SOIC-8 packages, suitable for industrial and commercial applications.
