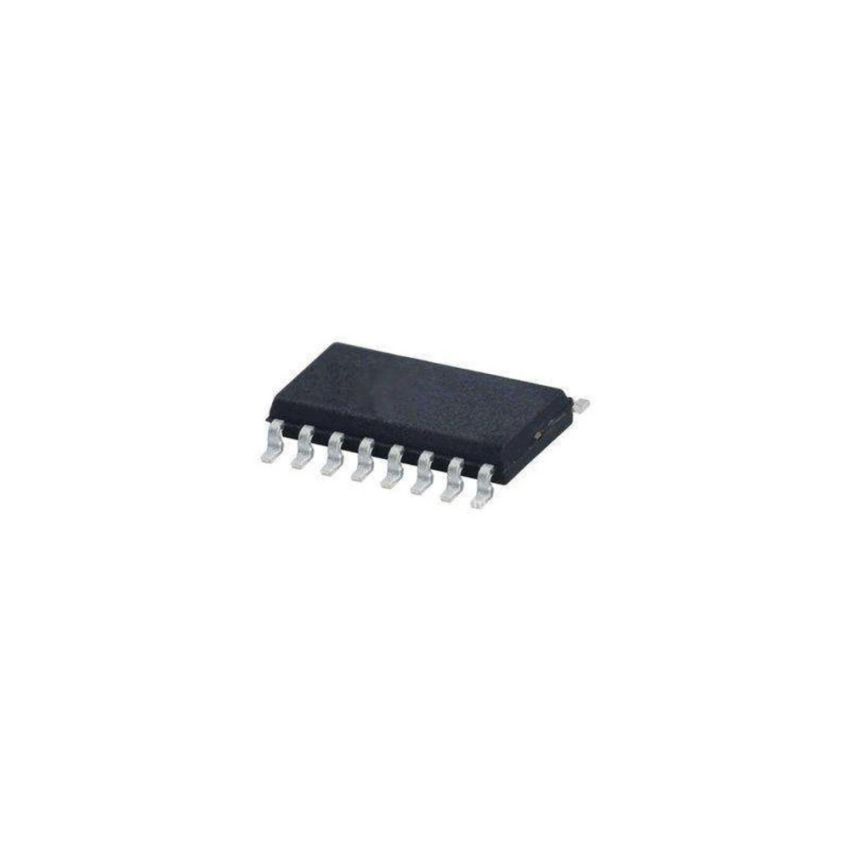

MM74HC4053M, Triple 2-Channel Analog Multiplexer/Demultiplexer, SOIC-16

The MM74HC4053M is a high-speed CMOS device functioning as a triple 2-channel analog multiplexer/demultiplexer. Each multiplexer has two independent inputs/outputs and a common input/output, controlled by individual select lines (A, B, and C) and an active LOW enable input (Inhibit). This configuration allows for precise channel selection and control. With a wide analog input voltage range and low ON-resistance, the MM74HC4053M is ideal for applications requiring efficient analog signal routing with minimal distortion.

• Triple 2-Channel Configuration: Integrates three independent 2-channel analog multiplexers/demultiplexers, facilitating efficient signal routing.
• Wide Analog Input Voltage Range: Supports analog signals ranging from +/-6V, enhancing versatility in various applications.
• Low ON-Resistance: Exhibits typical ON-resistance of 50Ohm at VCC - VEE = 4.5V, ensuring minimal signal loss.
• Low Quiescent Current: Consumes a maximum of 80 µA, promoting energy efficiency in electronic designs.
• Matched Switch Characteristics: Provides consistent performance across all channels, ensuring reliable operation.
• Compact SOIC-16 Package: Encased in a 16-pin Small Outline Integrated Circuit package, suitable for surface-mount applications.
