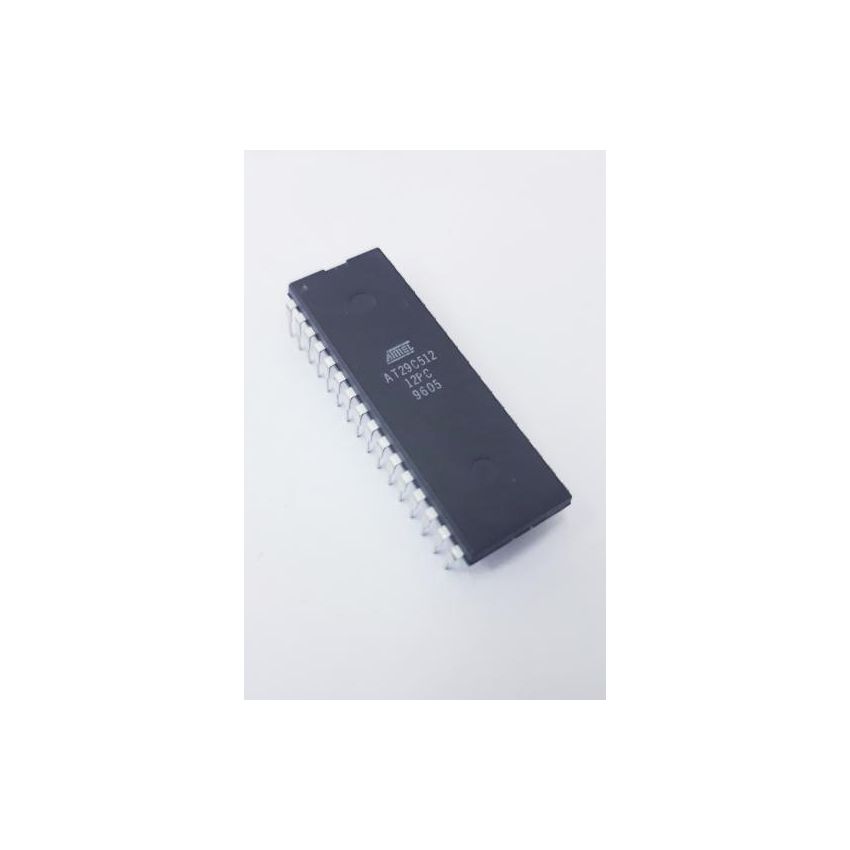

AT29C512-12PC DIP-32 ,512K (64K x 8) 5-Volt Only Flash Memory

The AT29C512-12PC is a 5-volt in-system Flash programmable and erasable read-only memory (PEROM) with a total memory capacity of 512K organized as 65,536 words by 8 bits. This DIP-32 package provides a reliable and efficient solution for memory storage in a wide range of applications. With a fast access time of 70 ns and the ability to undergo over 10,000 write/erase cycles, this flash memory offers both high performance and durability. The device operates with 5V ± 10% and integrates CMOS and TTL compatible inputs/outputs for seamless integration into commercial and industrial systems.

Key Features :

• Fast Read Access Time: 70 ns for high-speed data retrieval.
• 5-Volt Only Reprogramming: No high voltage required for reprogramming.
• Sector Program Operation: Single cycle reprogram of sectors (128 bytes per sector).
• Low Power Dissipation: 50 mA active current, 100 µA standby.
• Hardware and Software Data Protection: Ensures memory security during operation.
• High Endurance: Over 10,000 erase/program cycles with reliable performance.
