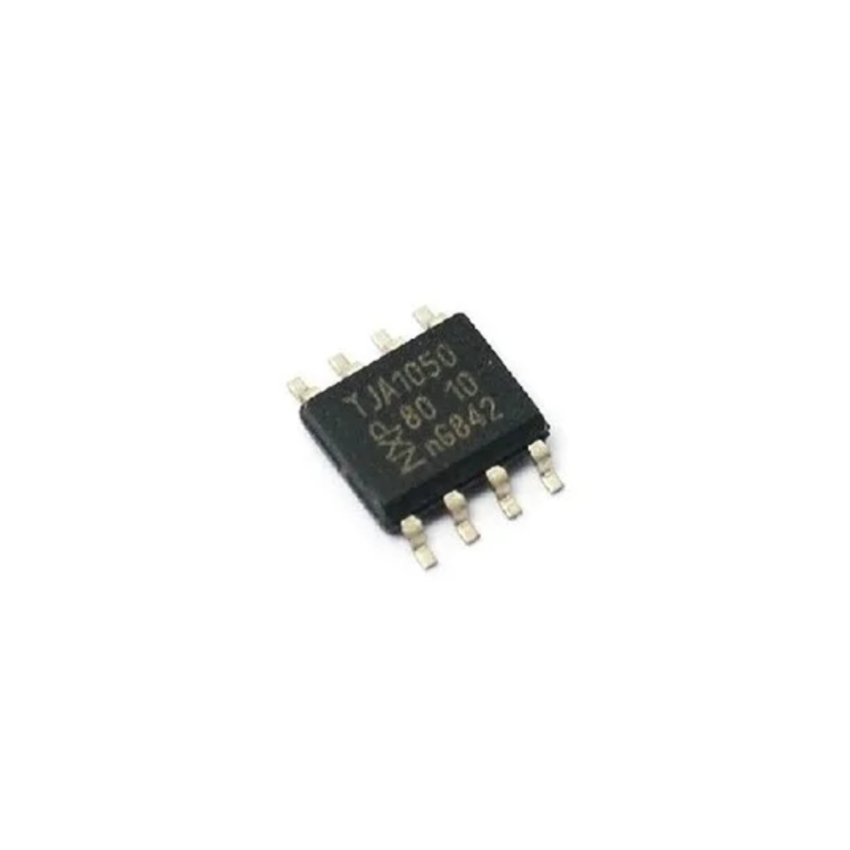

TJA1050T High-Speed CAN Transceiver, SOIC-8 Package

The TJA1050T is a high-speed CAN transceiver that serves as the interface between a Controller Area Network (CAN) protocol controller and the physical bus. It provides differential transmit and receive capability, facilitating reliable communication in automotive and industrial applications. The device is fully compatible with the ISO 11898 standard and supports data rates up to 1 Mbaud. Its design emphasizes low electromagnetic emission and high electromagnetic immunity, ensuring robust performance in challenging environments. The TJA1050T also offers a silent mode, thermal protection, and short-circuit proofing, enhancing its reliability and versatility in various applications.

• ISO 11898 Standard Compatibility: Fully compliant with the ISO 11898 standard, ensuring reliable communication in CAN networks.
• High-Speed Communication: Supports data rates up to 1 Mbaud, suitable for high-speed CAN applications.
• Low Electromagnetic Emission (EME): Optimized design minimizes electromagnetic interference, enhancing system performance.
• Wide Common-Mode Range: Differential receiver with a broad common-mode range provides high electromagnetic immunity (EMI).
• Silent Mode: Features a silent mode that disables the transmitter, allowing the node to listen to the bus without affecting communication.
• Robust Protection Features: Includes thermal protection, short-circuit proofing to battery and ground, and bus pins safeguarded against automotive transients.
