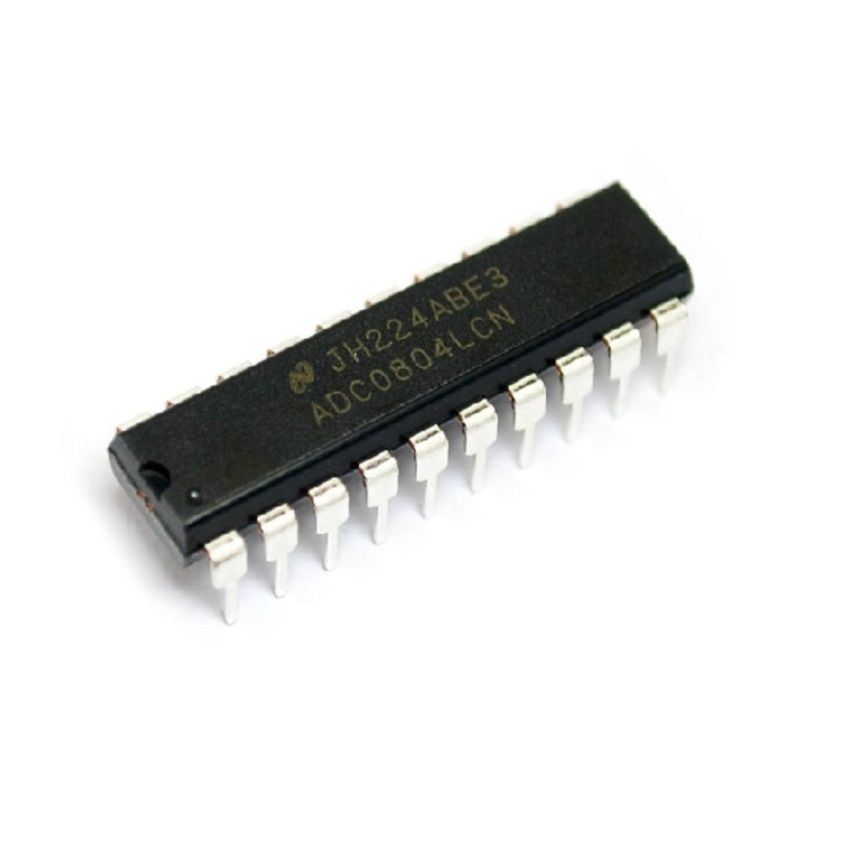

ADC0804LCN,Analog To Digital Converter,8-Bit, DIP-20,CMOS

The ADC0804LCN is an 8-bit analog-to-digital converter (ADC) that provides reliable and efficient data conversion for a variety of applications. With its CMOS design, this ADC offers low power consumption, making it ideal for portable and battery-operated devices. Its compatibility with most microprocessors and support for both single-ended and differential analog inputs ensure versatility and easy integration into existing systems.

Featuring a 3-state output and a single 5V power supply, the ADC0804LCN simplifies your design requirements. Its adjustable reference voltage and robust input voltage range allow for customized configurations tailored to your specific needs. This device is suitable for applications like transducer interfacing, digital thermometers, and microprocessor-based monitoring systems.

The ADC0804LCN is enclosed in a DIP-20 package, making it easy to use with breadboards or PCB prototypes. Whether you are building IoT devices, industrial control systems, or other electronic projects, this ADC ensures accuracy and performance at an affordable price.

• 8-Bit Resolution: Delivers accurate and reliable analog-to-digital conversions for various applications.
• Microprocessor Compatibility: Designed for seamless integration with most microprocessors, featuring TTL and MOS-compatible logic levels.
• Differential Analog Inputs: Supports flexible voltage ranges and enhanced common-mode noise rejection.
• Low Power CMOS Design: Operates efficiently with a single 5V power supply, consuming minimal power.
• Versatile Clocking Options: Can be used with internal or external clock sources for flexibility in system design.
• Compact DIP-20 Package: Easy to use in breadboarding and prototyping, simplifying hardware integration.
