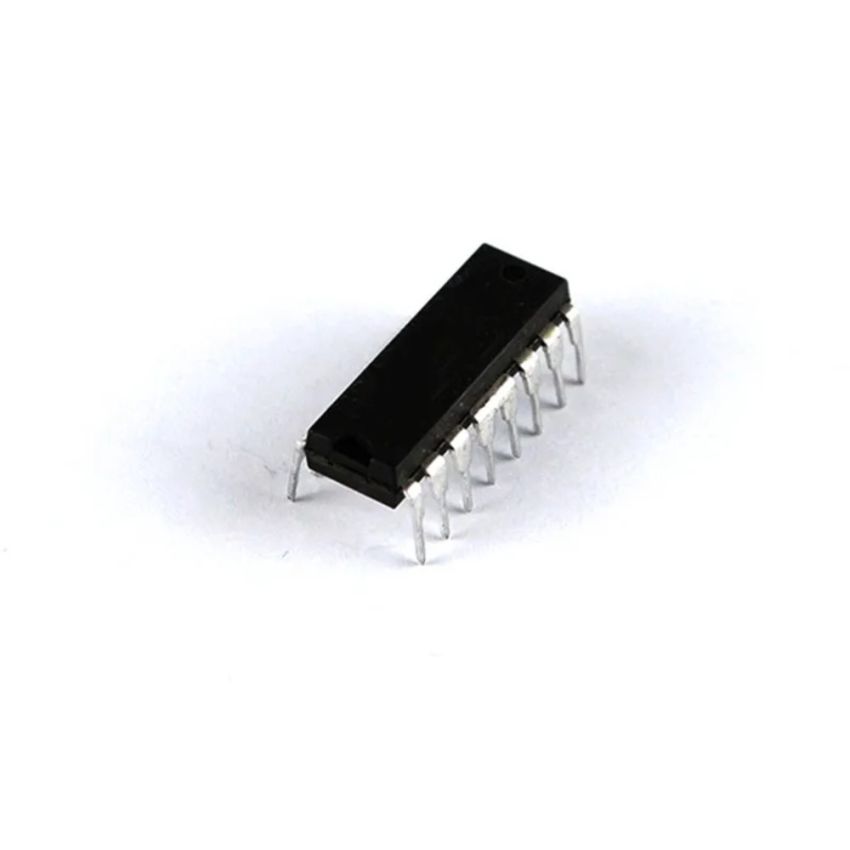

MC908QY4CP, 8-Bit Microcontroller, DIP-16

The MC908QY4CP is a member of the low-cost, high-performance M68HC08 family of 8-bit microcontroller units (MCUs) developed by Freescale Semiconductor (now NXP Semiconductors). Designed for a variety of embedded applications, it combines a high-performance M68HC08 CPU core with integrated peripherals to meet diverse application requirements.

Equipped with 4KB of on-chip Flash memory and 128 bytes of RAM, the MC908QY4CP provides sufficient storage for program code and data. The trimmable internal oscillator allows for up to 8MHz internal bus operation at 5V, eliminating the need for an external clock source in many applications.

The microcontroller features a 2-channel, 16-bit Timer Interface Module (TIM) for accurate timing operations and event counting. Additionally, it offers up to 13 bidirectional I/O lines with high current sink/source capability, selectable pull-ups, and various shared functions, enhancing its versatility in interfacing with external components.

Housed in a 16-pin Dual In-Line Package (DIP-16), the MC908QY4CP is suitable for through-hole mounting, facilitating easy integration into various hardware designs.

• High-Performance M68HC08 Core: Enhanced 8-bit CPU core compatible with M68HC05 family, offering efficient processing capabilities.
• 4KB On-Chip Flash Memory: Provides ample space for program storage with in-system programmable Flash memory.
• 128 Bytes of RAM: Facilitates efficient data handling for various applications.
• Internal Oscillator: Features a trimmable internal oscillator supporting up to 8MHz internal bus operation at 5V.
• 16-Bit Timer Interface Module (TIM): Includes a 2-channel TIM for precise timing and event counting.
• Multiple I/O Options: Offers up to 13 bidirectional I/O lines with high current sink/source capability and selectable pull-ups.
