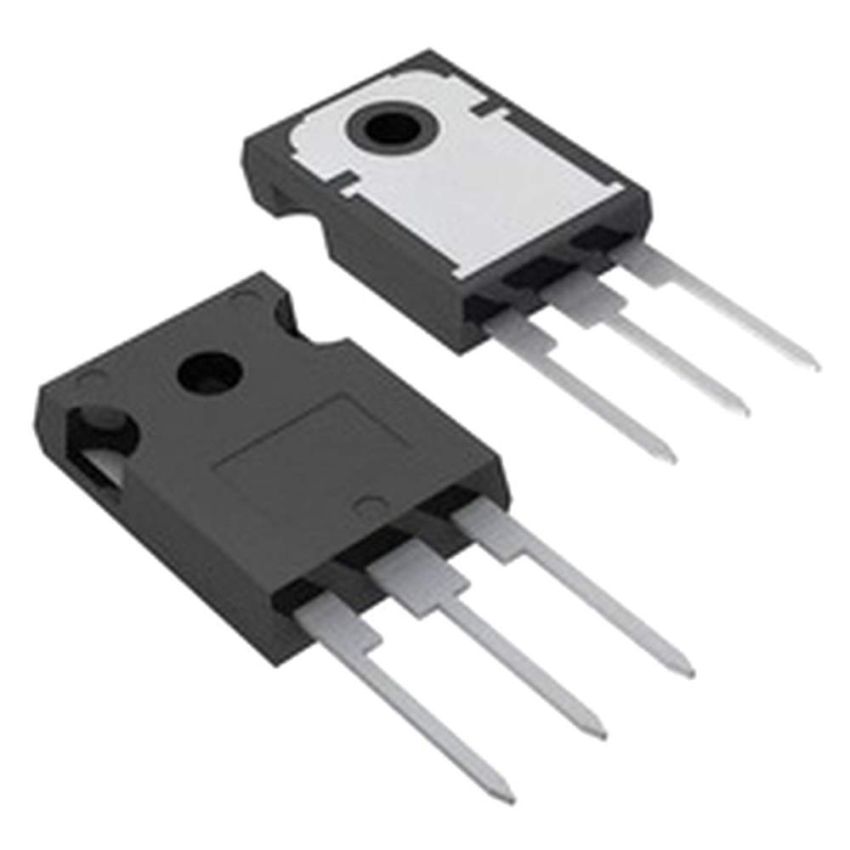

IRG4PC40K ,UltraFast IGBT ,TO-247-3, 600V, 42A

The IRG4PC40K is an advanced insulated gate bipolar transistor (IGBT) designed for high-performance applications requiring fast switching and short-circuit protection. With a voltage rating of 600V and a continuous collector current of 42A, this IGBT is optimized for high switching frequencies above 5 kHz and provides low conduction losses.

Key Features :

• High Current Capability: Continuous collector current of 42A at 25°C.
• Low VCE(on): Offers lower conduction losses with a typical VCE(on) of 2.1V at 25A.
• Fast Switching: Optimized for high switching frequencies above 5 kHz with fast turn-on and turn-off times.
• Short-Circuit Protection: Short-circuit withstand time of 10µs at 15V.
• Thermal Efficiency: Low thermal resistance (junction-to-case) of 0.77°C/W, ensuring high reliability under heavy loads.
• TO-247AC Package: Suitable for applications requiring efficient heat dissipation and high power handling.
