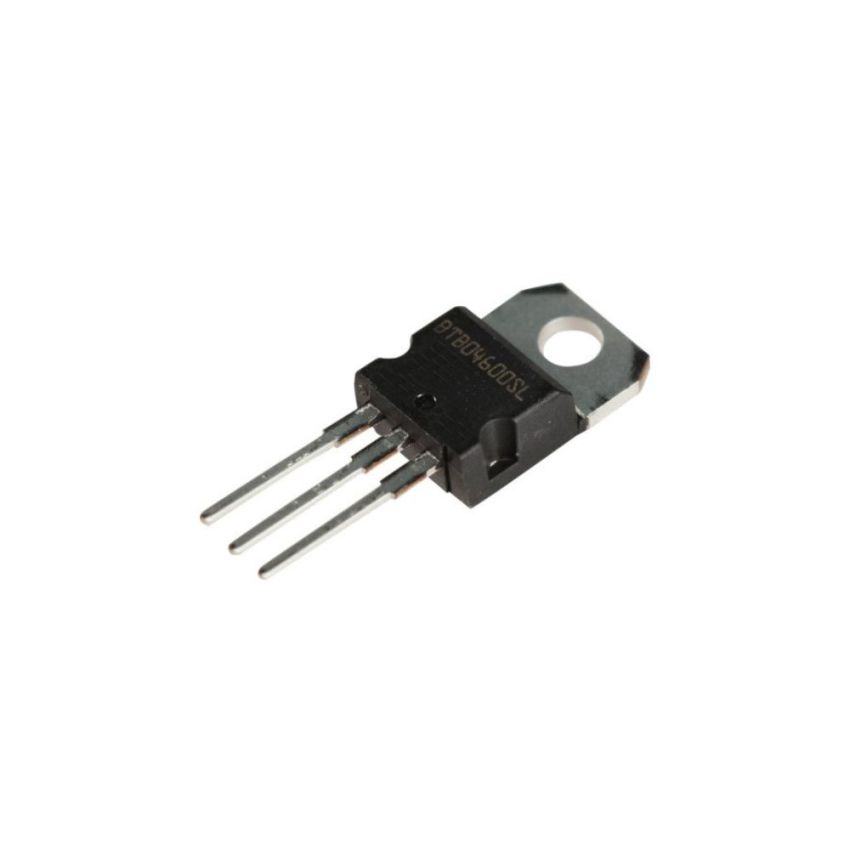

BTB04-600SL, 4A 600V Standard TRIAC, TO-220AB

The BTB04-600SL is a standard 4A TRIAC designed for general-purpose AC switching applications where high surge current capability is required. It can handle an RMS on-state current of up to 4A and withstand non-repetitive surge peak on-state currents up to 35A at 50Hz and 38A at 60Hz, ensuring reliable performance under demanding conditions. With a sensitive gate trigger voltage of 1.3V and a gate trigger current of 10mA, the BTB04-600SL is easily triggered, making it suitable for various control applications. Its high blocking voltage of 600V makes it ideal for use in applications such as lighting, corded power tools, and industrial equipment. The device is housed in a standard TO-220AB package, simplifying mounting and integration into existing designs.

• Moderate Current Handling – Capable of handling an RMS on-state current of up to 4A, suitable for various AC switching applications.
• High Surge Capability – Withstands non-repetitive surge peak on-state currents up to 35A at 50Hz and 38A at 60Hz, ensuring robustness under transient conditions.
• Sensitive Gate Trigger Requirements – Features a gate trigger voltage of 1.3V and a gate trigger current of 10mA, facilitating easy triggering.
• High Blocking Voltage – Rated for a repetitive off-state voltage of 600V, providing reliable performance in high-voltage applications.
• Standard TO-220AB Package – Facilitates easy mounting and integration into various designs.
• Wide Operating Temperature Range – Operates reliably within a temperature range of -40°C to 125°C, suitable for various environments.
