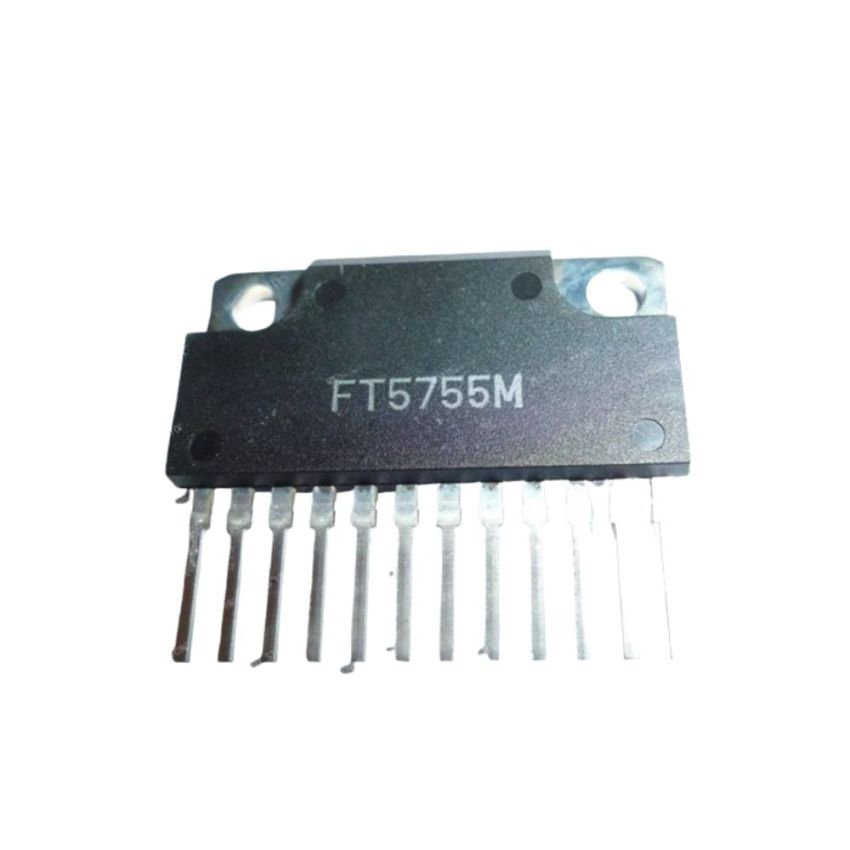

FT5755M, NPN Darlington Transistor Array, 12-Pin Package

The FT5755M is engineered for applications requiring high-current switching and amplification. Each of the four NPN Darlington transistor pairs within the array is equipped with fast recovery diodes to manage inductive loads effectively. The device's high DC current gain and substantial voltage ratings make it ideal for use in motor drives, solenoid controls, and other demanding switching applications. Its isolated package design enhances thermal management, ensuring reliable performance in compact electronic assemblies.

• High DC Current Gain: Typical gain of 6000, providing substantial amplification.
• Integrated Fast Recovery Diodes: Each transistor pair includes diodes to absorb fly-back voltage, enhancing protection in inductive load applications.
• High Collector-Emitter Voltage: Maximum rating of 100V, suitable for various high-voltage applications.
• Significant Collector Current Capacity: Continuous current rating of up to 5A per transistor pair.
• Isolated Package Design: Ensures minimal thermal interference between transistor pairs.
• Compact 12-Pin Package: Facilitates space-efficient PCB design.
