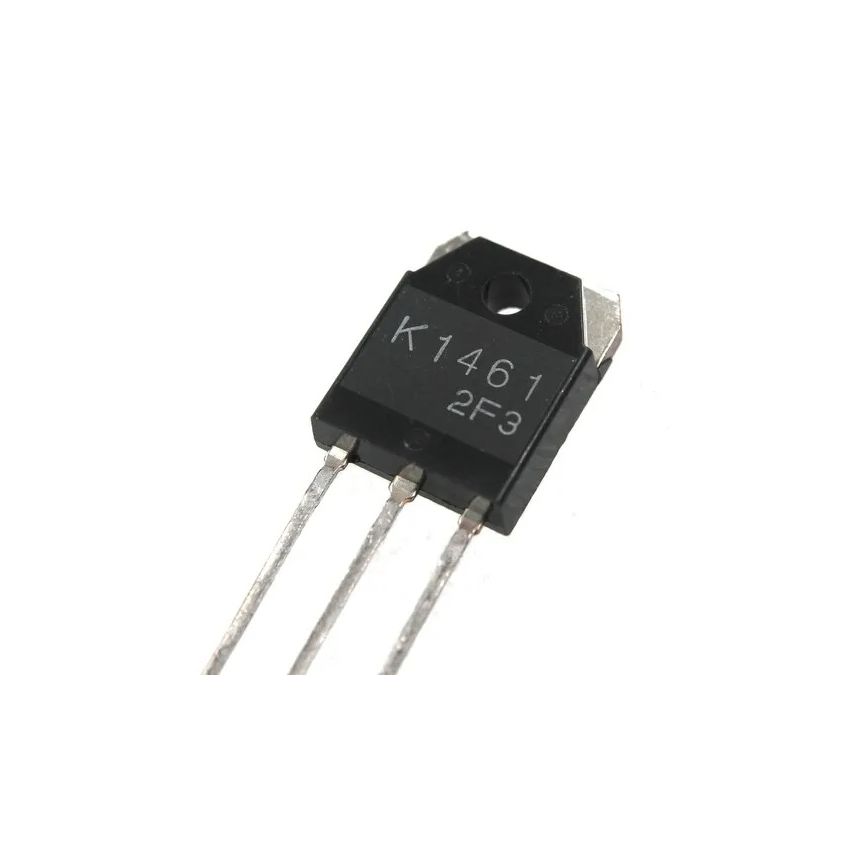

2SK1461,N-Channel MOSFET,900V,5A

The 2SK1461 is a high-performance N-Channel MOS Silicon Field Effect Transistor designed for very high-speed switching applications. It features a low on-state resistance, enabling efficient operation in DC-DC converters, chopper regulators, and motor drive applications. This MOSFET supports a drain-source breakdown voltage of 900V and a continuous drain current of 5A, making it ideal for high-voltage, high-current applications. Its enhanced thermal and switching capabilities allow operation in demanding environments. The transistor comes in a TO-220 package for convenient mounting and excellent heat dissipation.

Key Features :

• High Voltage Tolerance: Drain-source breakdown voltage of 900V ensures compatibility with high-voltage circuits.
• Efficient Current Handling: Continuous drain current of 5A with pulse current up to 10A for high-power applications.
• Fast Switching Performance: Low turn-on delay time of 15 ns and turn-off time of 80 ns.
• Thermal Reliability: Operates over a wide temperature range of -55C to 150C with an allowable power dissipation of 120W.
• Low On-Resistance: Rds(on) as low as 2.8Ohm at Vgs = 10V for minimal power loss.
• Versatile Applications: Ideal for high-speed switching in converters and motor drives.
