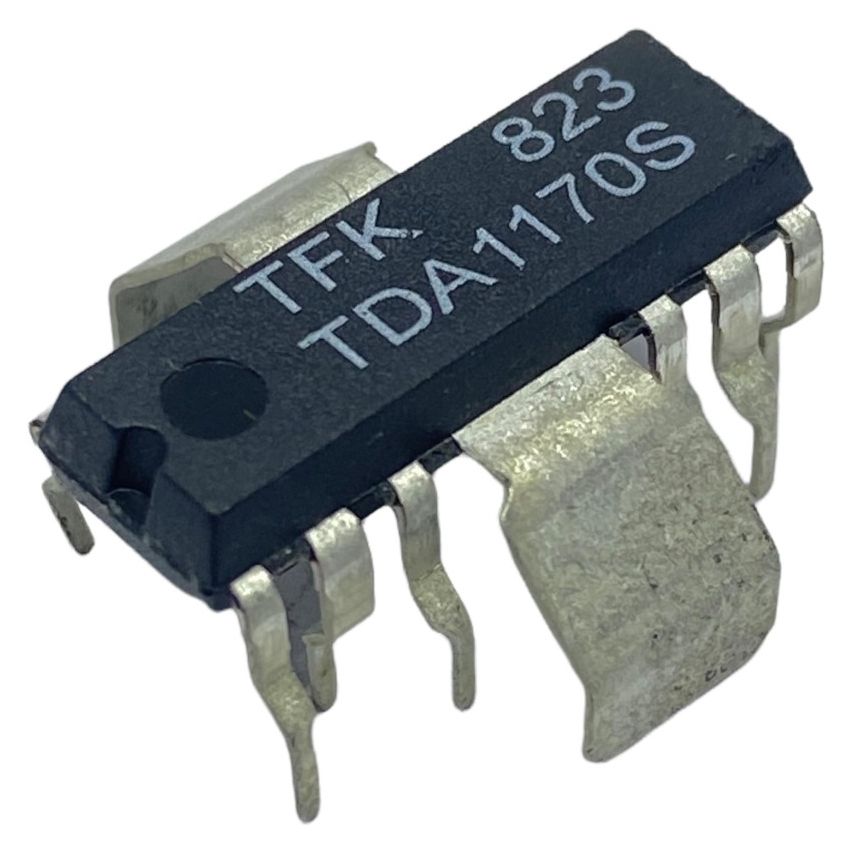

TDA1170S, TV Vertical Deflection IC, FINDIP-12

The TDA1170S is a monolithic TV Vertical Deflection IC designed for CRT-based televisions, integrating essential functions such as oscillation, synchronization, ramp generation, and high-power amplification. This IC simplifies vertical deflection circuits by incorporating a flyback generator, reducing power consumption and enhancing efficiency.

With an integrated voltage regulator, the TDA1170S ensures stable operation over a 10V to 35V supply range. Its high-output drive stage can deliver up to 1.5A peak-to-peak, making it suitable for larger CRT yokes. The IC is housed in a FINDIP-12 package, optimizing heat dissipation while enabling easy PCB integration.

• Integrated Vertical Deflection System: Combines oscillator, synchronization, ramp generator, and power amplifier for CRT display applications.
• Voltage Regulation: Built-in supply regulation ensures stable operation.
• Flyback Generator: Reduces power consumption and enhances efficiency.
• High Output Drive: Capable of handling up to 1.5A peak-to-peak for large CRT yoke applications.
• Compact 12-Pin FINDIP Package: Provides efficient heat dissipation and easy integration.
• Designed for CRT Televisions: Ensures smooth vertical deflection for black-and-white and color TVs.
