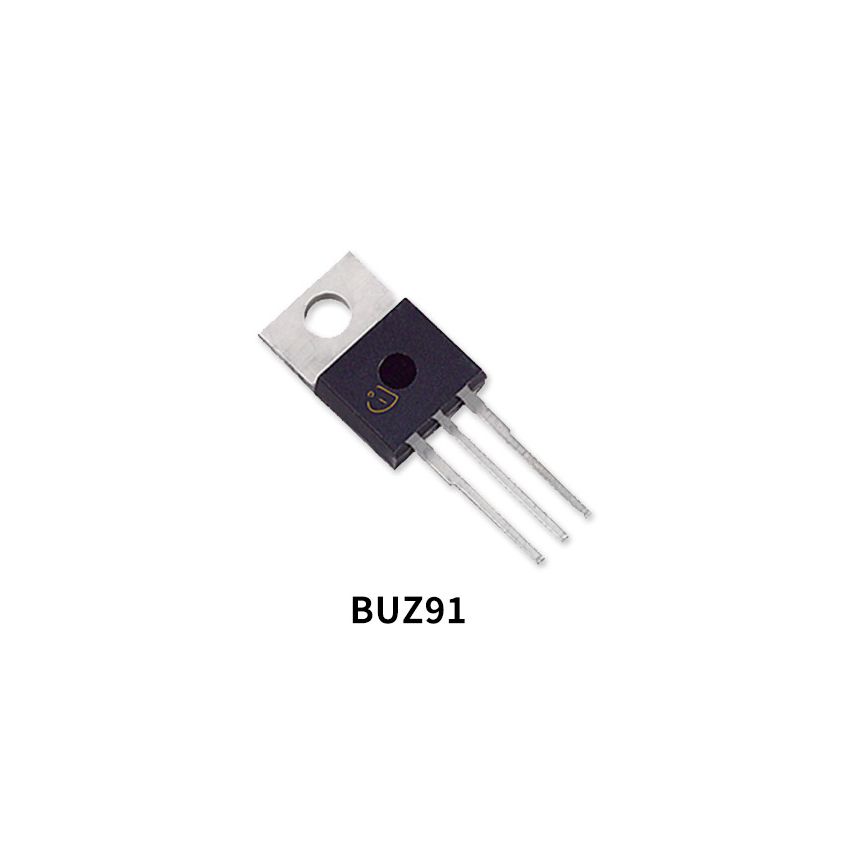

BUZ91,N-Channel Power MOSFET-600V,8.5A,TO-220AB

The BUZ91 is an N-Channel Power MOSFET with a drain-source voltage rating of 600V and a continuous current drain of 8.5A, making it suitable for various power switching applications. With a TO-220AB package, it offers high efficiency, thermal stability, and reliable performance under a wide range of operating conditions. Its avalanche energy rating ensures robust operation in harsh environments.

Key Features :

• High Drain-Source Voltage (Vds): Rated at 600V for high-voltage applications.
• Continuous Drain Current (Id): Handles up to 8.5A at Tc = 32C.
• Gate-Source Threshold Voltage (Vgs(th)): 2.1V (min) to 4.0V (max) for efficient switching.
• Power Dissipation: Maximum dissipation of 150W ensures thermal stability.
• Low On-State Resistance (Rds(on)): Provides efficient power switching.
• Wide Operating Temperature Range: From -55C to +150C for industrial-grade reliability.
