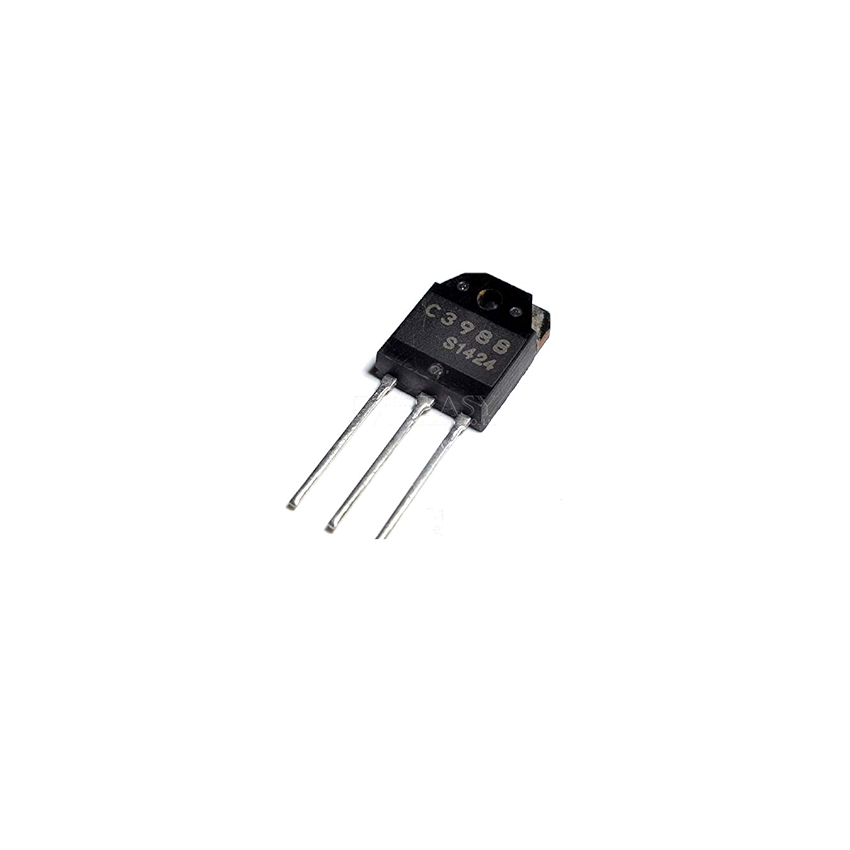

2SC3988 ,NPN Silicon Transistor, 500V Collector-Emitter Voltage, 25A Collector Current,TO-3P

The 2SC3988 is a high-performance NPN triple-diffused planar silicon transistor designed for switching regulator applications. It features high breakdown voltage and reliability, coupled with fast switching speeds for optimal performance. With a maximum collector-emitter voltage of 500V and a continuous collector current rating of 25A, this transistor is suitable for high-power operations.

Key Features :

• High collector-emitter voltage rating of 500V for robust applications.
• Continuous collector current rating up to 25A.
• Pulse current handling capability of 40A for transient loads.
• Low switching loss with a rise time of 0.5 us and fall time of 0.3 us.
• Operates efficiently across a wide temperature range of -55C to +150C.
• Compact TO-3P package for better thermal dissipation.
