FDD5N50NZF,N-Channel MOSFET,500V,3.7A

The FDD5N50NZF is a high-voltage N-channel UniFET FRFET MOSFET designed for optimal switching performance in applications such as LCD/LED TVs, lighting systems, and uninterruptible power supplies (UPS). With a drain-source voltage of 500V and a continuous drain current of 3.7A, this MOSFET features an advanced planar stripe and DMOS technology for reduced gate charge and on-state resistance.

Key Features :

• Drain-Source Breakdown Voltage (Vds) of 500V for high-voltage applications.
• Continuous Drain Current (Id) of 3.7A at 25C for moderate load handling.
• Low Rds(on) of 1.75Ohm (typical) for enhanced efficiency and reduced power loss.
• Gate Threshold Voltage (Vgs(th)) range of 3.0V to 5.0V for precise switching control.

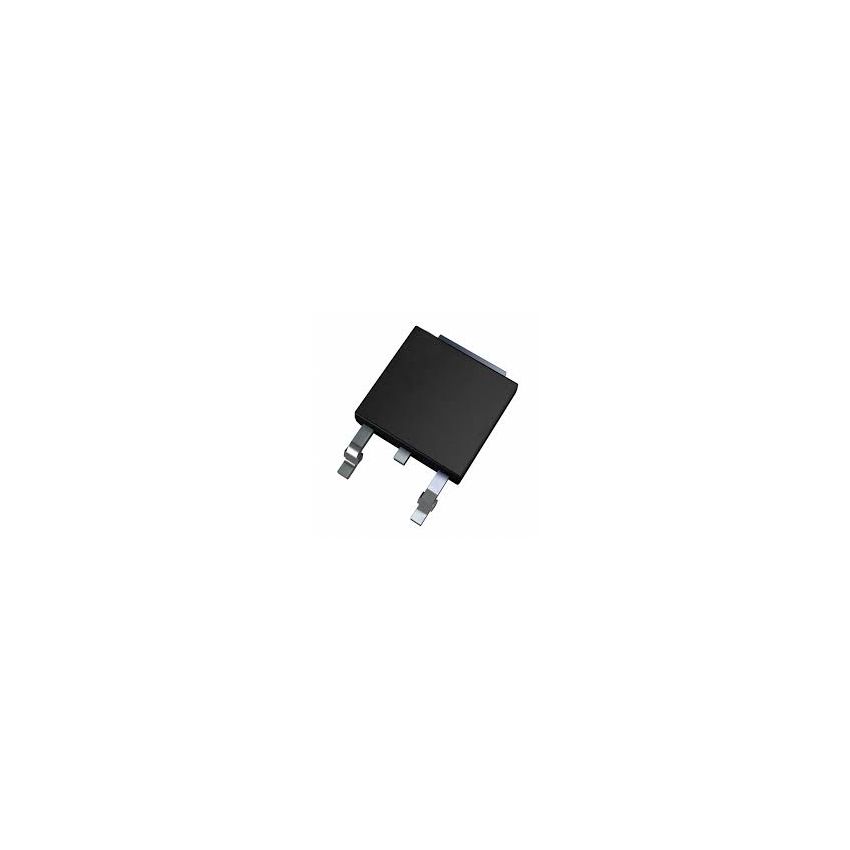

• Compact TO-252-2 (D-PAK) package for efficient heat dissipation.
• Operating junction temperature range of -55C to 150C for reliable operation in diverse environments.
