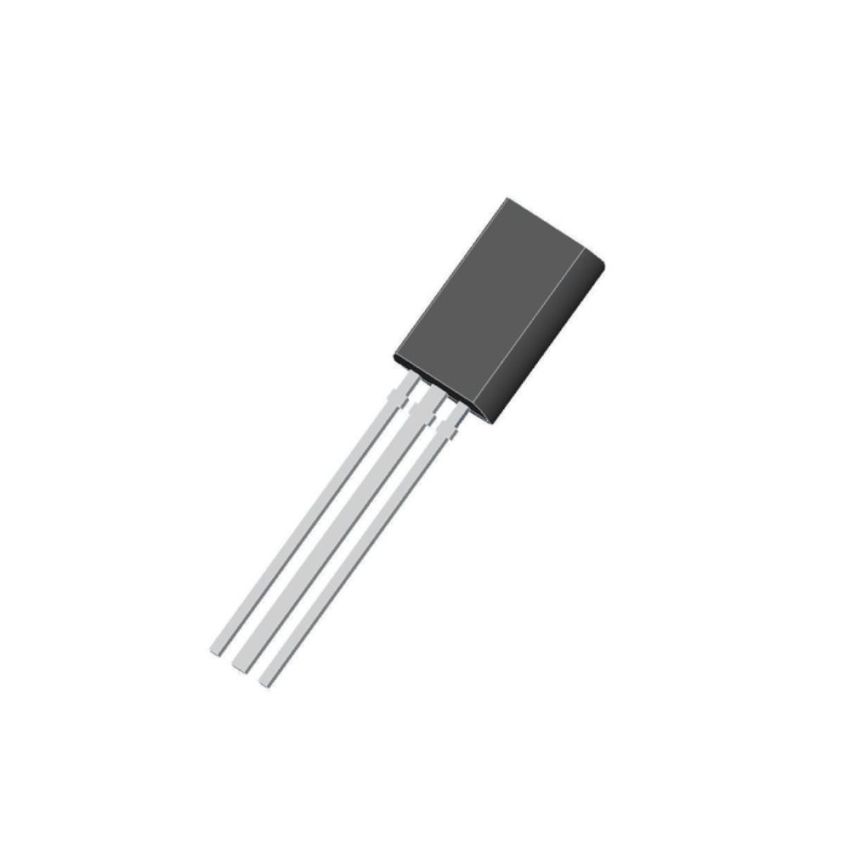

2SC2060, NPN Transistor, TO-92L Package

The 2SC2060 is a silicon NPN transistor housed in a TO-92L plastic package. It is designed for low to moderate power amplification and switching applications. Its low saturation voltage and high transition frequency make it suitable for various high-frequency applications. Additionally, it is designed to complement the 2SA934 PNP transistor, allowing for versatile circuit configurations.

• Low Saturation Voltage: Exhibits a low collector-emitter saturation voltage (V_CE(sat)) of 0.15V at 500mA, ensuring efficient operation with minimal power loss.
• Moderate Power Dissipation: Capable of dissipating up to 0.75W, suitable for low to moderate power applications.
• Complementary Pair: Designed to pair with the 2SA934 PNP transistor for push-pull or complementary amplifier configurations.
• High Transition Frequency: Offers a transition frequency (f_T) of 75 MHz, making it suitable for high-frequency applications.
• Compact Package: Housed in a TO-92L package, facilitating easy integration into various circuit designs.
• Wide Operating Temperature Range: Operates reliably within a junction temperature range of -55°C to 150°C, suitable for various environmental conditions.
