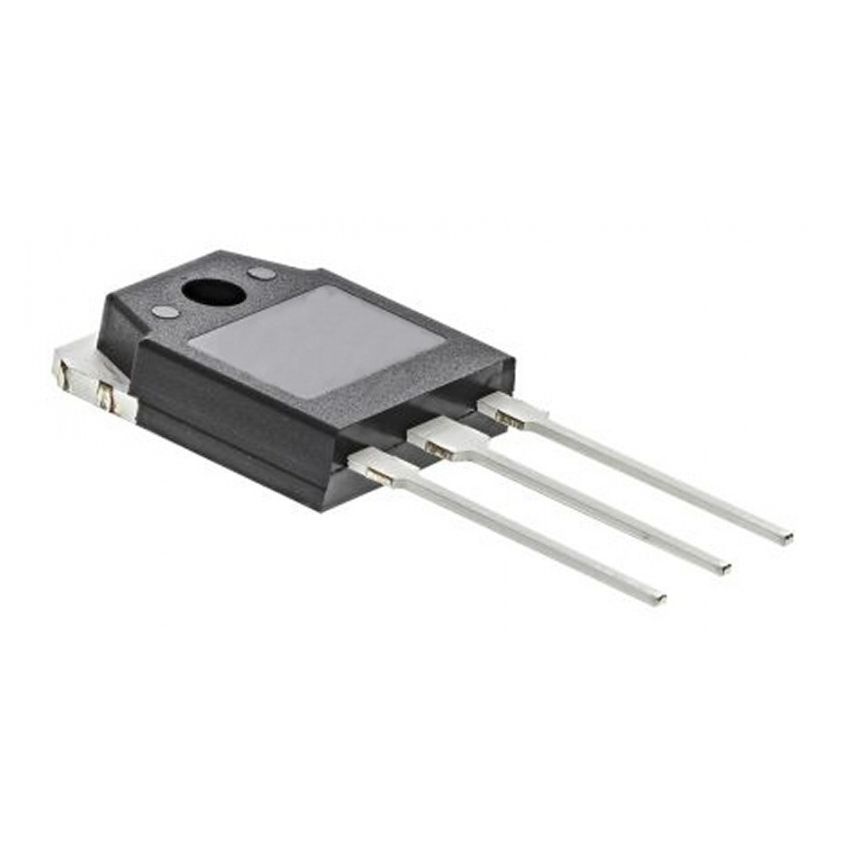

TIP140T,NPN Silicon Darlington Transistor - 80V,10A

TIP140T,NPN Silicon Darlington Transistor - 80V,10A

SKU
SCTx2747
Brand
Fairchild Semiconductor
Part Number
TIP140T
Categories:
Semiconductors, Transistors, Generic, Darlington Transistors, Fairchild Semiconductor
AED 12.00
Be the first to review this product
Only 19 left
Add to Wish List
Add to Compare
Ask for Quotation

Ask for Quotation

Guarantee safe & secure checkout

The TIP140T is a high-performance NPN epitaxial silicon Darlington transistor designed for high-current gain applications. It features a monolithic construction with built-in base-emitter shunt resistors, making it ideal for industrial use and complementary configurations.

With a collector-emitter voltage rating of up to 80V and a collector current of 10A, this transistor is suitable for power control circuits, motor drives, and other industrial applications. The device comes in a TO-220 package, ensuring efficient heat dissipation.

Key Features :

  • High Current Gain: h_FE of 1000 at V_CE = 4V, I_C = 5A.
  • Collector-Emitter Voltage (V_CEO): 80V maximum.
  • Collector Current (I_C): 10A DC and 15A pulse.
  • Low Saturation Voltage: V_CE(sat) of 3V maximum at I_C = 5A.
  • Built-In Resistors: Includes base-emitter shunt resistors for improved performance.
  • Industrial-Grade Durability: Operating temperature range of -55C to 150C.
Mounting Style Through Hole
