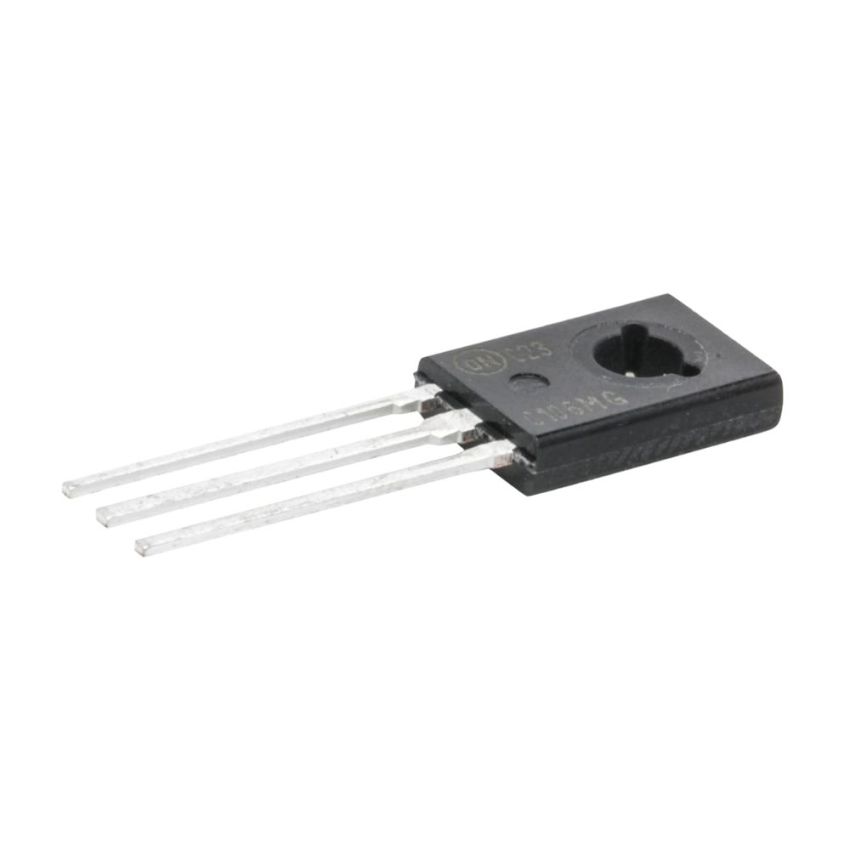

C106MG, Sensitive Gate Thyristor,TO-225AA

The C106MG is a high-performance sensitive gate silicon-controlled rectifier (thyristor), engineered for demanding applications requiring reliable operation in high-voltage environments. With a repetitive off-state voltage of up to 600V and a current handling capacity of 4A RMS, this thyristor is suitable for applications like temperature, light, and speed control, process automation, and remote control systems.

The C106MG features a sensitive gate design, requiring only 200µA of gate trigger current and 0.8V of trigger voltage, ensuring seamless operation in low-power conditions. Its rugged construction, including a glassivated surface and Thermopad technology, ensures reliability and efficient heat dissipation, even in harsh environments.

Encased in a compact TO-225AA package, the C106MG is designed for ease of integration into existing systems while maintaining high performance and durability. This thyristor is a cost-effective and robust solution for industrial, consumer, and control applications.

• High Voltage Handling: Rated for up to 600V repetitive off-state voltage (VDRM).
• Low Gate Trigger Requirements: Sensitive gate with maximum gate trigger voltage (Vgt) of 0.8V and current (Igt) of 200µA.
• Rugged Design: Glassivated surface for improved reliability and uniformity.
• Thermal Efficiency: Flat, rugged Thermopad construction for low thermal resistance and high heat dissipation.
• Surge Capability: Supports 20A non-repetitive surge peak on-state current (ITSM).
• Compact TO-225AA Package: Ideal for high-density designs and cost-efficient production.
