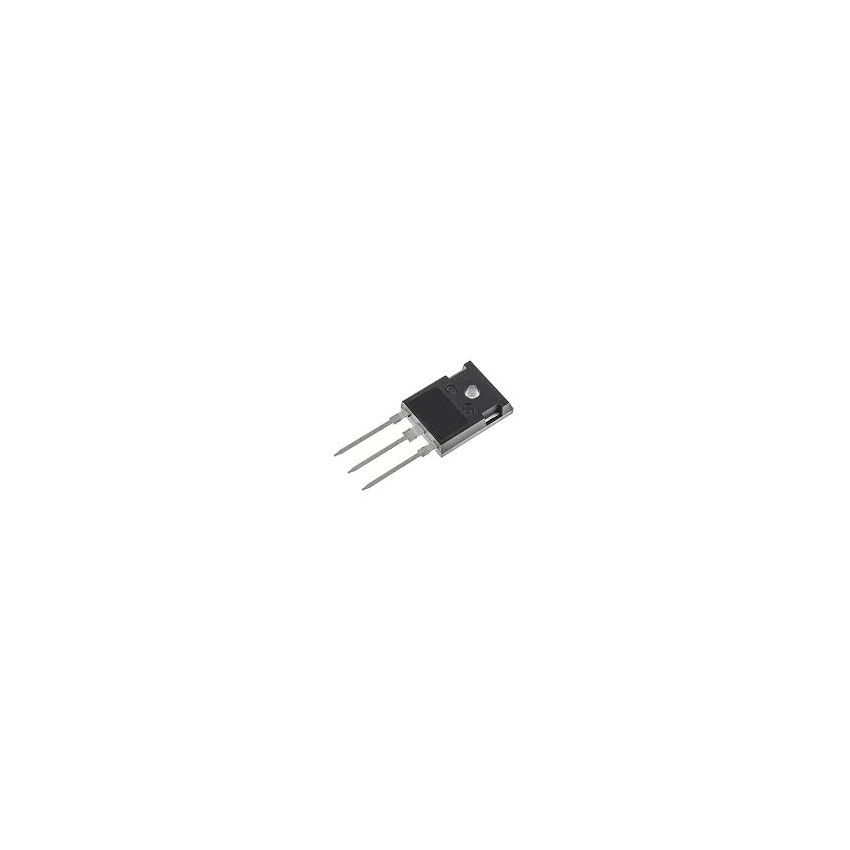

IRG4PH40U, Ultra Fast Speed IGBT, 1200V, 41A, TO-247AC

The IRG4PH40U is an ultra-fast Insulated Gate Bipolar Transistor (IGBT) with an optimized design for high operating frequencies. This component, manufactured by International Rectifier, is particularly suited for applications requiring high-speed switching, such as SMPS, UPS systems, and power conversion operations.

The device features a Vce(sat) value of 2.43V and can handle a maximum continuous collector current of 41A at 25°C. With a maximum Collector-Emitter Breakdown Voltage (Vces) of 1200V, the IRG4PH40U offers robust performance in demanding environments, making it suitable for resonant-mode applications and high-frequency operations up to 40 kHz. Its TO-247AC package ensures ease of integration into various circuit designs.

Key Features :

• Ultra-fast switching: Optimized for high operating frequencies, supporting up to 40 kHz in hard switching and >200 kHz in resonant mode.
• Low Vce(on): Provides lower conduction losses, enhancing efficiency.
• High-efficiency IGBT design: Tighter parameter distribution and higher efficiency than previous generations.
• Higher power dissipation: Maximum power dissipation of 160W at 100°C, providing stability in high-power applications.
• Wide operating range: Supports a wide range of temperatures with an operating junction range of -55°C to 150°C.
• Low gate charge: Low total gate charge (Qg = 86nC), reducing switching losses and improving overall system efficiency.
