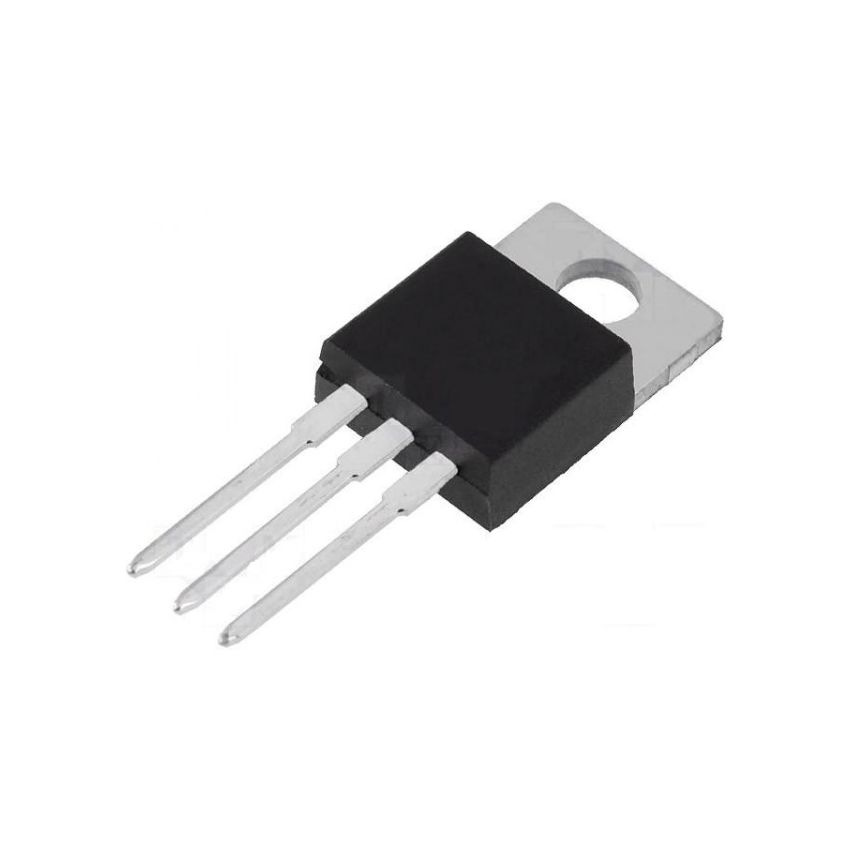

IRF9630,P-Channel Power MOSFET,-200V VDS,-4.0A ID

The IRF9630 is a high-performance P-channel power MOSFET designed for switching and amplification applications in commercial and industrial environments. With a Drain-Source Voltage (VDS) of -200V and a Continuous Drain Current (ID) of -4.0A, this MOSFET is suitable for high-voltage and medium-power applications. Encased in a durable TO-220AB package, the IRF9630 provides excellent thermal performance and reliability.

Featuring low gate charge, low on-resistance, and fast switching, the IRF9630 is optimized for efficiency and ease of use in applications like power supplies, motor drives, and inverter circuits. Its wide operating temperature range ensures reliability in various environments.

Key Features :

• High Voltage Capability: Handles up to -200V Drain-Source Voltage (VDS).
• High Current Capability: Supports a continuous Drain Current (ID) of -4.0A
• Low On-Resistance: RDS(on) of 0.80Ohm ensures efficient operation.
• Fast Switching: Optimized for high-speed switching with low gate charge (Qg typical: 29nC).
• Compact TO-220AB Package: Provides excellent thermal and electrical performance.
• Wide Operating Temperature Range: Reliable operation from -55C to +150C.
