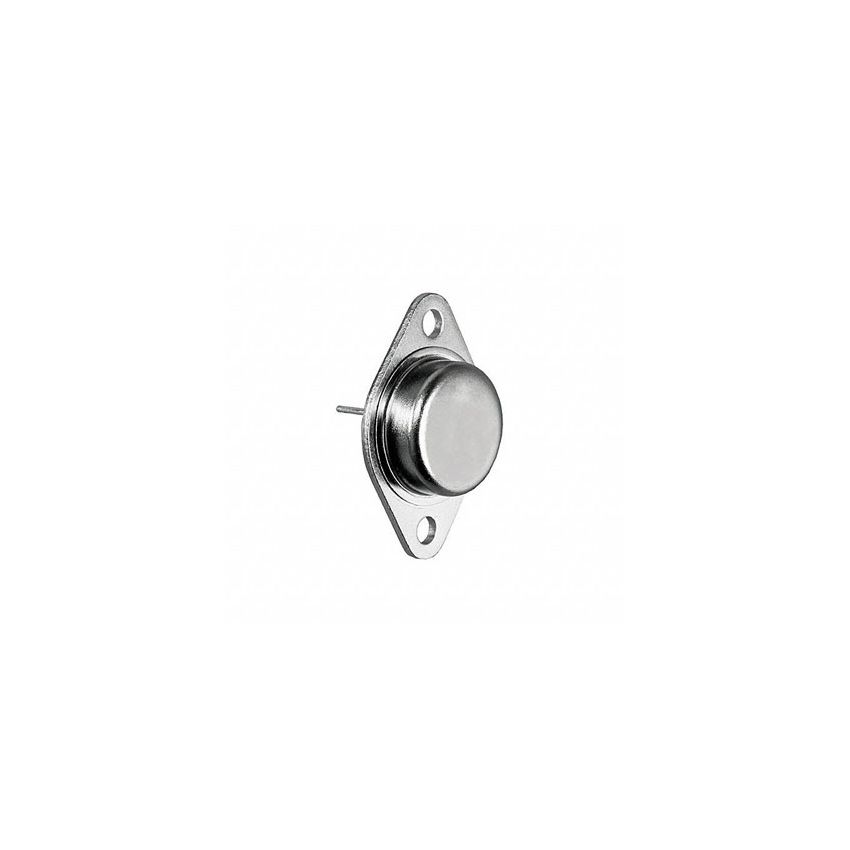

MJ11014, High-Current NPN Power Transistor - 120V, 30A

The MJ11015 is a high-current NPN power transistor designed for use in general-purpose amplifier applications and complementary circuits. With a maximum collector-emitter voltage of 120V and a continuous collector current rating of 30A, this transistor is well-suited for demanding high-power circuits. Its monolithic construction incorporates built-in base-emitter shunt resistors, ensuring stability and performance.

This transistor boasts a high DC current gain (hFE) of up to 1000, ensuring efficient amplification and power switching capabilities. The MJ11015 is housed in a rugged TO-204AA (TO-3) package, providing excellent heat dissipation and mechanical durability. Its wide operating temperature range of -55C to 200C allows it to function reliably in harsh environments, making it ideal for industrial and amplifier applications. Whether used in high-voltage switching circuits or power amplifiers, the MJ11015 delivers reliable and efficient performance.

Key Features :

• Designed for high-current applications, delivering up to 30A continuous collector current.
• Offers a maximum collector-emitter voltage of 120V, suitable for high-voltage applications.
• Monolithic construction with built-in base-emitter shunt resistors for enhanced stability.
• Exceptional high DC current gain (hFE = 1000 at 10A), providing efficient performance in amplifier circuits.
• Wide operating junction temperature range of -55C to 200C for versatile usage in demanding environments.
• Robust TO-204AA (TO-3) package for optimal heat dissipation and mechanical stability.
