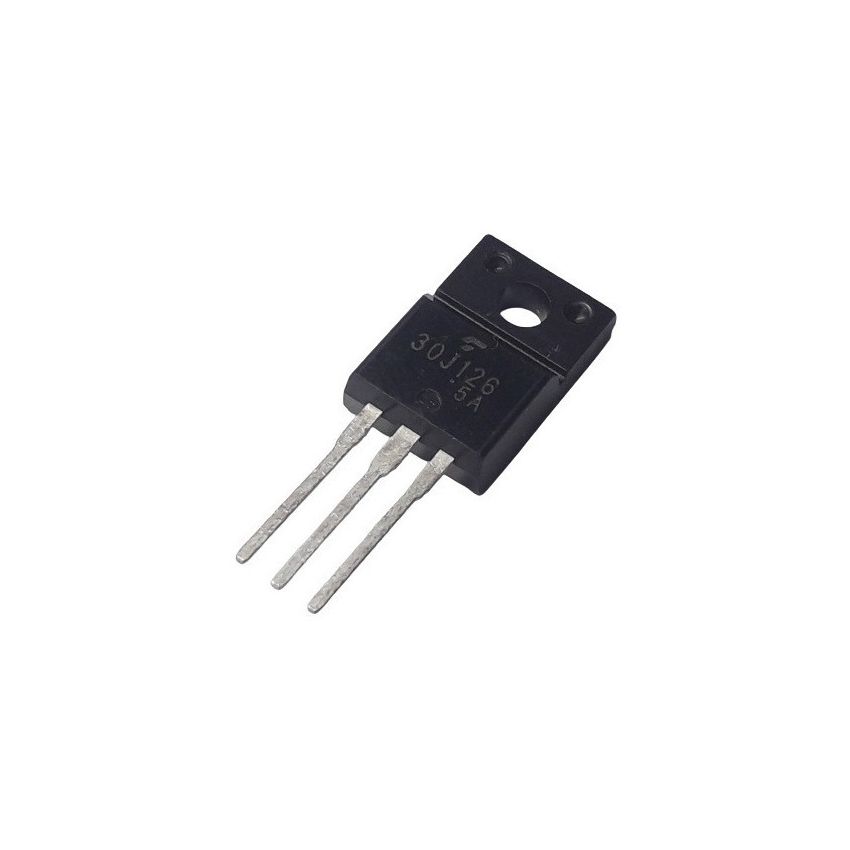

30J126, N-Channel IGBT with Low Saturation Voltage, TO-3PN Package

The GT30J126 is a 600V, 30A N-Channel Insulated Gate Bipolar Transistor (IGBT) designed for power switching applications such as motor drivers, high-frequency inverters, and industrial power supplies. Manufactured by Toshiba, this fourth-generation IGBT provides enhanced efficiency, low conduction loss, and fast switching characteristics.

With a Collector-Emitter Voltage (V_CES) rating of 600V and a Continuous Collector Current of 30A, the GT30J126 is optimized for high-power applications requiring minimal power dissipation. The low Collector-Emitter Saturation Voltage (V_CE(sat)) of 1.95V at 30A ensures lower conduction losses, enhancing overall system efficiency.

The TO-3PN package offers superior heat dissipation, making it ideal for high-power and industrial applications that require reliable thermal performance. The device's fast switching speed enables higher efficiency in switching power supplies (SMPS), induction heating circuits, and pulse power applications.

• High Voltage Rating: Collector-Emitter Voltage (V_CES) of 600V, suitable for high-power applications.
• High Current Capability: Continuous Collector Current of 30A at 25°C, peak collector current of 90A for transient loads.
• Low Saturation Voltage: Collector-Emitter Saturation Voltage (V_CE(sat)) of 1.95V at 30A, minimizing conduction losses.
• Fast Switching Performance: Optimized for high-speed operation with a fall time (t_f) of 0.05µs, improving efficiency in dynamic applications.
• Robust Design: Rated for high thermal performance with a maximum junction temperature of 150°C.
• TO-3PN Package: Ensures efficient heat dissipation, ideal for power electronics applications.
