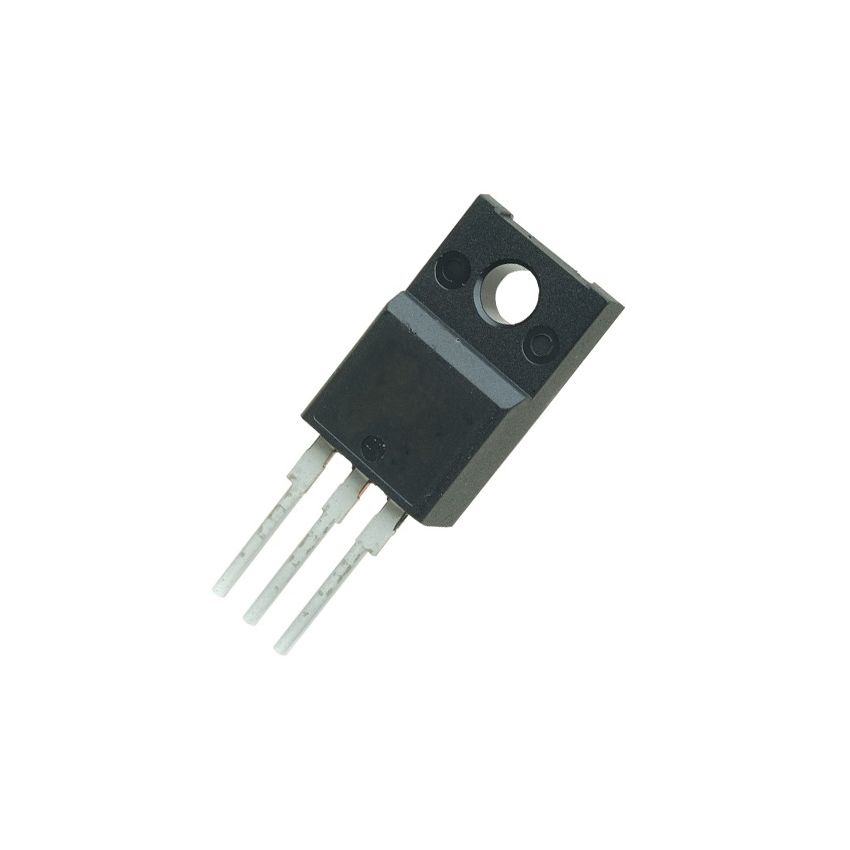

IRFI9634G,P-Channel MOSFET,TO-220 FullPak Package,-250V Drain-Source Voltage

The IRFI9634G is a high-performance P-Channel Power MOSFET designed for efficient switching and amplification applications. With a drain-source breakdown voltage of -250V and a continuous drain current of -4.1A, it ensures reliable operation in high-voltage environments. The advanced process technology delivers enhanced ruggedness, fast switching, and high dynamic dV/dt capability, making it suitable for industrial and automotive applications.

The TO-220 FullPak package eliminates the need for additional insulating hardware, ensuring easier installation while maintaining low thermal resistance. It is RoHS-compliant and optimized for cost-effectiveness and reliability.

Key Features :

• High Voltage Handling: -250V drain-source breakdown voltage.
• Efficient Operation: Continuous drain current of -4.1A with a low RDS(on) of 0.65Ohm.
• Thermal Optimization: TO-220 FullPak package for better thermal performance.
• Fast Switching: Low gate charge for high-speed switching.
• Rugged Design: Fully avalanche rated and high dynamic dV/dt capability.
• Eco-Friendly: RoHS-compliant with lead-free finish.
