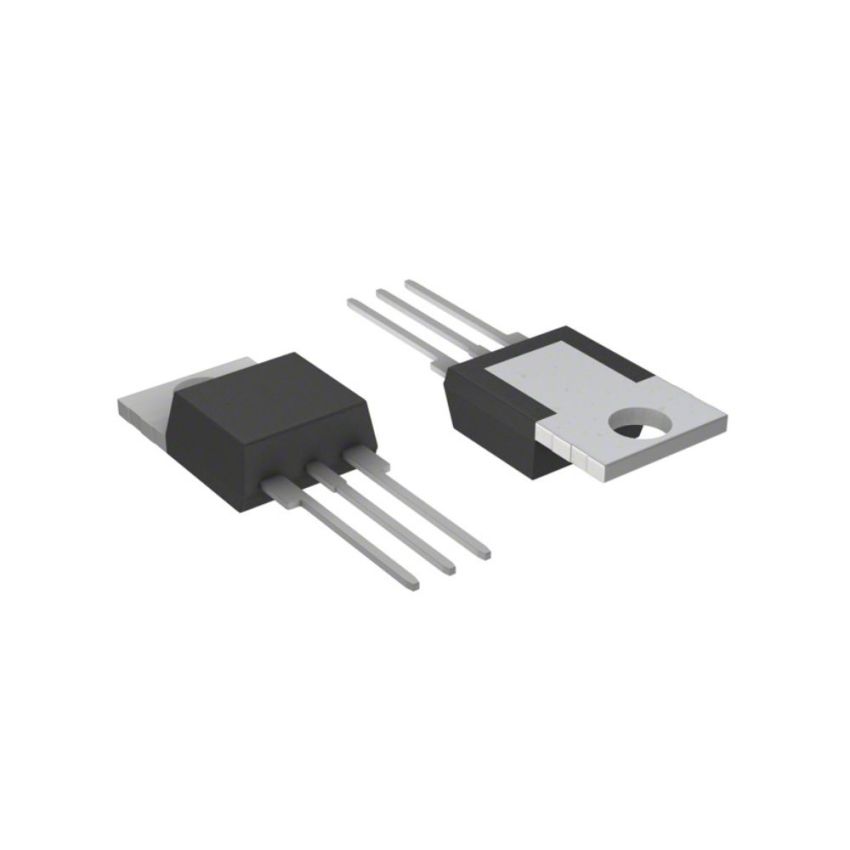

D4015L, Silicon Rectifier, TO-220-3 Package

The D4015L is a high-performance silicon rectifier designed for DC phase control and motor control applications. It offers excellent thermal dissipation thanks to its isolated TO-220-3 package, making it ideal for high-voltage and high-current environments. With a low forward voltage drop and robust surge current capability, it ensures efficient and reliable operation. Its compact design and through-hole mounting style make it easy to integrate into various PCB layouts.

• High Peak Reverse Voltage: Rated for 400V, suitable for high-voltage DC phase control applications.
• Efficient Forward Current Handling: Delivers a 9.5A average forward current, ensuring reliable operation in demanding circuits.
• Low Forward Voltage Drop: Reduces power losses with a typical Vf of 1.2V.
• Robust Surge Capability: Handles up to 150A surge current, protecting against transient overloads.
• Compact Design: TO-220-3 isolated tab package ensures excellent thermal dissipation.
• Wide Operating Range: Functions reliably in temperatures from -40°C to +125°C.
