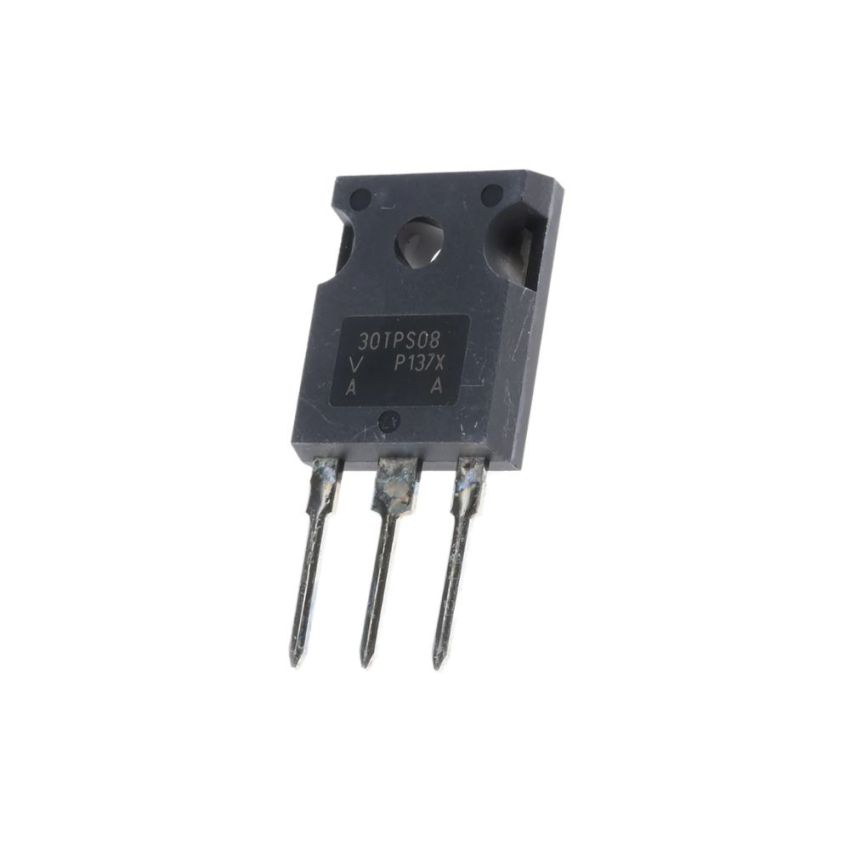

30TPS08,Phase Control SCR, TO-247AC

The 30TPS08 is a silicon-controlled rectifier (SCR) designed for medium power switching and phase control applications. It can handle an average on-state current of up to 20A and withstand non-repetitive surge peak on-state currents up to 300A, ensuring reliable performance under demanding conditions. With a gate trigger voltage of 2.0V and a gate trigger current of 45mA, the 30TPS08 is easily triggered, making it suitable for various control applications. Its wide operating temperature range and high blocking voltage further enhance its versatility and reliability in diverse environments. The device is housed in a standard TO-247AC package, simplifying mounting and integration into existing designs.

• Medium Power Switching – Designed for medium power switching and phase control applications.
• High Surge Capability – Withstands non-repetitive surge peak on-state currents up to 300A, ensuring robustness under transient conditions.
• Low Gate Trigger Requirements – Features a gate trigger voltage of 2.0V and a gate trigger current of 45mA, facilitating easy triggering.
• Wide Operating Temperature Range – Operates reliably within a temperature range of -40°C to 125°C, suitable for various environments.
• High Blocking Voltage – Rated for a repetitive off-state voltage of 800V, providing robust performance in high-voltage applications.
• Standard TO-247AC Package – Facilitates easy mounting and integration into various designs.
