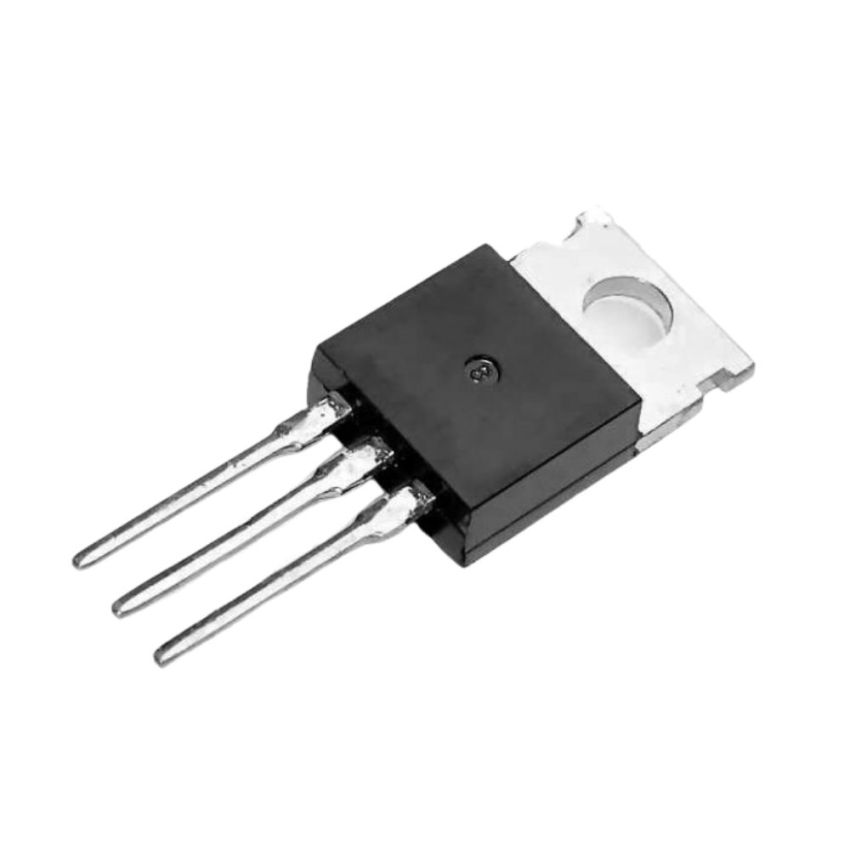

2SC2502, NPN Power Transistor, TO-220 Package

The 2SC2502 is a silicon NPN power transistor housed in a TO-220C package. It is designed for high-voltage, high-speed power switching in inductive circuits. Its high breakdown voltage, fast switching speed, and low saturation voltage make it suitable for various high-power applications.

• High Breakdown Voltage: Collector-Emitter Sustaining Voltage (V_CEO) rated at 400V, suitable for high-voltage applications.
• High-Speed Switching: Designed for rapid switching applications, enhancing performance in dynamic circuits.
• Low Collector-Emitter Saturation Voltage: V_CE(sat) is 0.7V (Max) at I_C = 3A, ensuring efficient operation with minimal power loss.
• High Collector Current: Capable of handling a collector current (I_C) up to 6A, accommodating substantial power loads.
• TO-220C Package: Provides efficient heat dissipation and ease of mounting.
• Enhanced Thermal Stability: Designed with an optimized heat dissipation structure in the TO-220C package, ensuring reliable operation under high power conditions.
