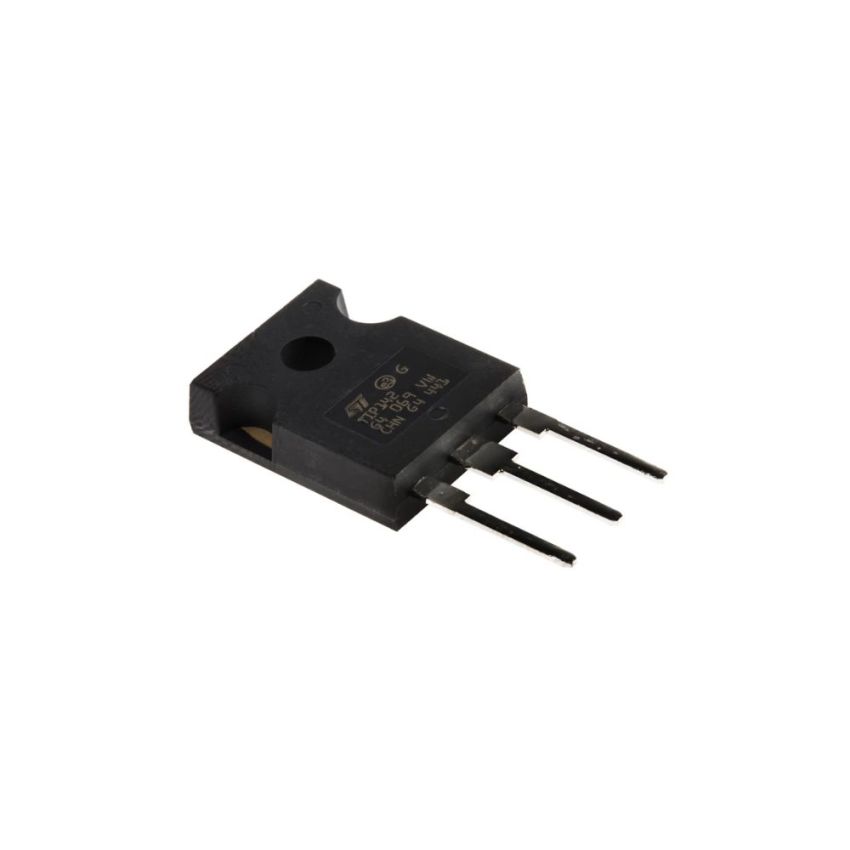

TIP142,NPN Darlington Power Transistor,TO-247

The TIP142 is a high-performance NPN Darlington power transistor designed for industrial applications, including linear and switching equipment. Built with a monolithic Darlington configuration and integrated antiparallel collector-emitter diode, this component delivers exceptional high-gain performance and low saturation voltage. Encased in a durable TO-247 package, the TIP142 is engineered for robust operation with a maximum collector current of 10A and peak current of 20A. With a collector-emitter voltage (VCEO) of 100V, this transistor is ideal for handling demanding voltage and current requirements.

Its advanced planar technology and “base island” layout contribute to its reliability and efficiency, while the 125W power dissipation ensures it can manage high loads. The TIP142 is suitable for industrial environments and offers a wide operating temperature range of -65°C to +150°C. Whether you are designing or maintaining industrial systems, the TIP142 provides dependable performance for your critical applications.

• High Current Capacity: Supports a continuous collector current of up to 10A and a peak current of 20A.
• Robust Voltage Ratings: Offers a collector-emitter voltage (VCEO) of 100V and collector-base voltage (VCBO) of 100V.
• High Power Dissipation: Designed for high-performance applications with a power dissipation of 125W.
• Monolithic Darlington Configuration: Ensures exceptional gain performance with integrated antiparallel diode.
• Durable Build: Manufactured using planar technology with a base island layout for durability and efficiency.
• Wide Operating Temperature Range: Operates effectively in temperatures ranging from -65°C to +150°C.
