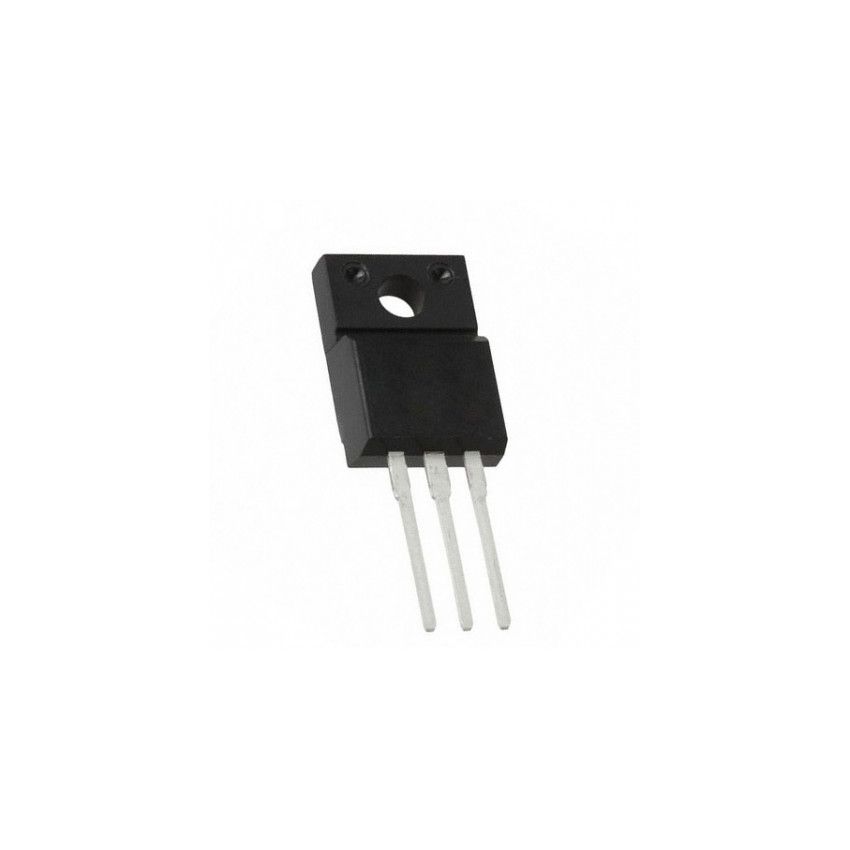

2SD2141, NPN Transistor, 380V VCEO, 8A Ic, TO-220F-3

The 2SD2141 is a high-performance silicon NPN triple-diffused planar transistor engineered for high-speed switching applications. It integrates a built-in avalanche diode for surge absorption, ensuring high reliability in demanding applications.

With a maximum collector-emitter voltage of 380V and a current capacity of 8A, it is suitable for use in ignitor circuits, solenoid drivers, motor controllers, and general-purpose electronic circuits. The TO-220F-3 package offers excellent heat dissipation and ease of assembly, making it an ideal choice for industrial and commercial applications.

Key Features :

• Built-in Avalanche Diode: Provides surge absorption for enhanced protection.
• High Voltage Capability: Withstands collector-emitter voltages up to 380V.
• Versatile Applications: Designed for ignitors, solenoids, motors, and general-purpose use.
• Efficient Performance: Base-emitter saturation voltage ensures efficient operation at 2.5V.
• Compact Package: TO-220F-3 housing ensures compactness and efficient heat dissipation.
• High Reliability: Triple-diffused planar structure for better performance and longevity.
