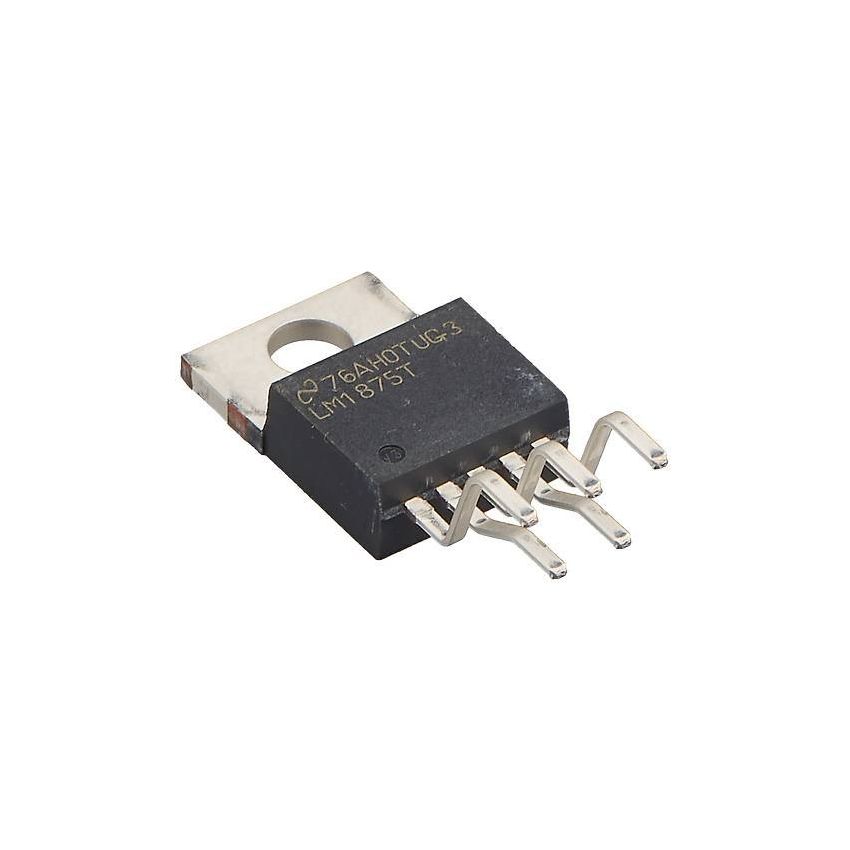

LM1875T ,Audio Power Amplifier IC, Class AB, Mono, 20W, TO-220-5

The LM1875T Audio Power Amplifier is a high-quality, monolithic integrated circuit designed to deliver outstanding audio performance in various applications. This amplifier provides up to 20 watts of continuous average power to an 8-ohm load with a total harmonic distortion of 0.015% at 1 kHz. Optimized for low noise and minimal distortion, it is an ideal choice for high-performance audio systems.

With built-in thermal and overcurrent protection, the LM1875T is reliable and robust, suitable for use in demanding environments. Its wide supply voltage range (16V - 60V) and high current capability (up to 4A) ensure versatility and performance stability in audio projects.

Constructed in a TO-220-5 package, the LM1875T supports easy integration into compact audio circuits, making it perfect for stereo phonographs, servo amplifiers, instrument systems, and other high-quality audio applications. The LM1875T operates on a Class AB topology, balancing efficiency and linearity to ensure high-fidelity sound output.

Key Features :

• High Output Power: Delivers up to 30W of peak output power with low distortion.
• Low Noise & Distortion: Maintains a 0.015% total harmonic distortion at 20W and 1kHz.
• Protection Mechanisms: Integrated thermal protection and short circuit safeguards enhance durability and safety.
• High Ripple Rejection: Provides 94 dB ripple rejection, ensuring stable audio performance in noisy environments.
• Wide Supply Voltage Range: Operates effectively within a range of 16V to 60V for various audio applications.
• Easy Integration: Packaged in a TO-220-5 form factor, simplifying PCB layout and heat dissipation in compact designs.
