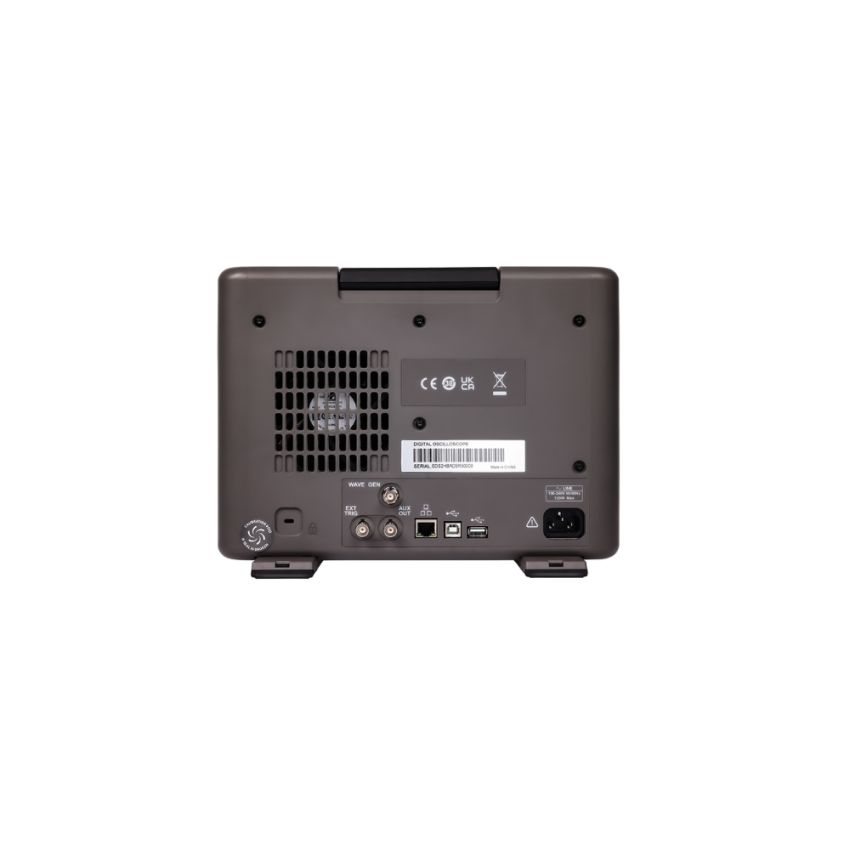

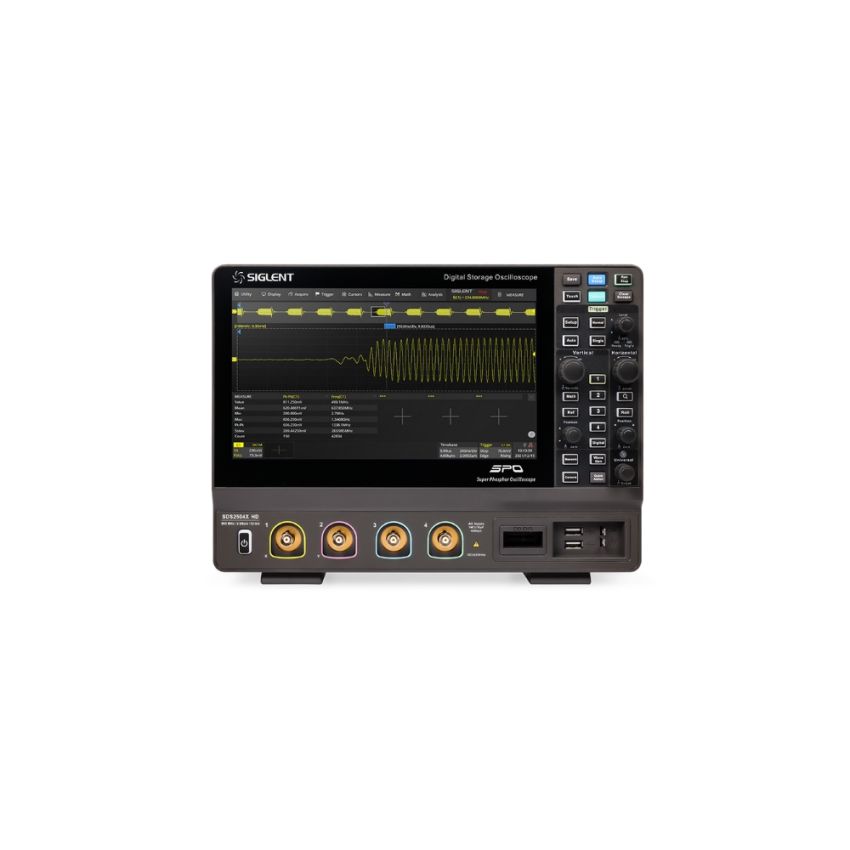

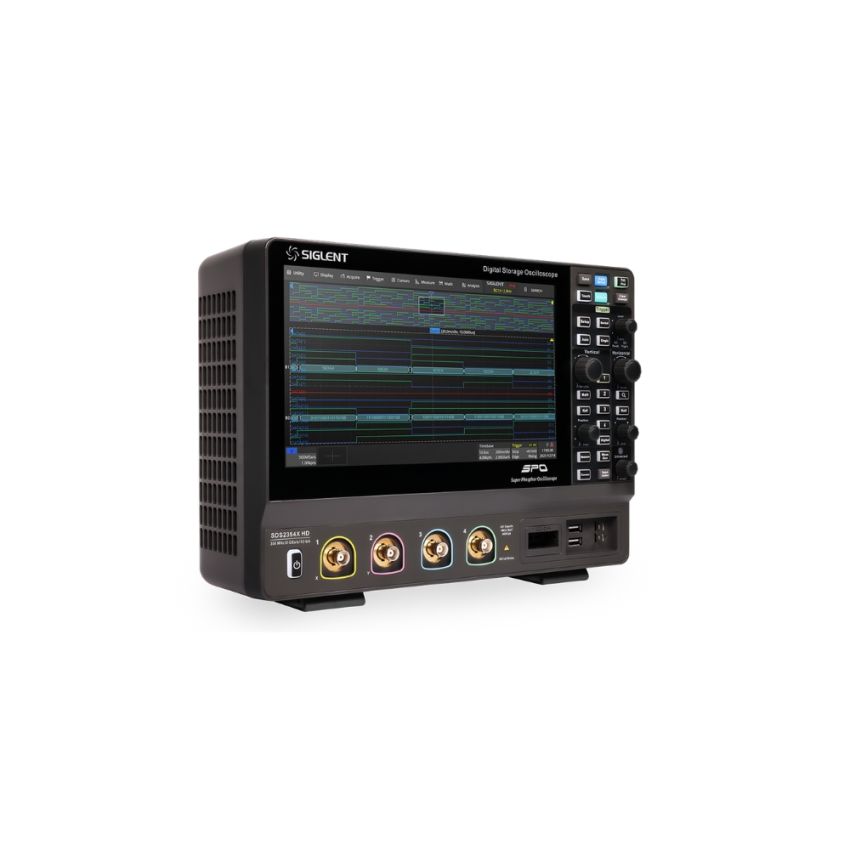

SDS2204X HD, 4-Channel, 12-bit, 200 MHz Digital Oscilloscope

he Siglent SDS2204X HD is a high-resolution digital oscilloscope offering 4 analog channels with a bandwidth of 200 MHz, extendable up to 500 MHz via software upgrade. It features a 12-bit analog-to-digital converter, providing enhanced vertical resolution for detailed waveform analysis. With a maximum real-time sample rate of 2 GSa/s (interleaving mode), it ensures accurate capture of high-speed signals. The oscilloscope boasts a large 10.1-inch TFT-LCD display with 1024 × 600 resolution, facilitating clear visualization of waveforms. Additionally, it supports a record length of up to 200 Mpts per channel, accommodating extensive data capture for in-depth analysis.

Key Features

• High Vertical Resolution: 12-bit ADC delivers over 16 times the resolution of standard 8-bit oscilloscopes, revealing finer signal details.
• Wide Bandwidth: 200 MHz standard bandwidth, upgradable to 500 MHz, supports a broad range of applications.
• High Sample Rate: Real-time sampling rate up to 2 GSa/s in interleaving mode ensures precise signal capture.
• Large Display: 10.1-inch capacitive touch screen with 1024 × 600 resolution offers an intuitive user interface.
• Deep Memory Depth: Up to 200 Mpts per channel allows for long-duration signal capture without compromising sample rate.
• Advanced Triggering: Supports multiple trigger modes, including edge, slope, pulse width, and serial bus protocols.
