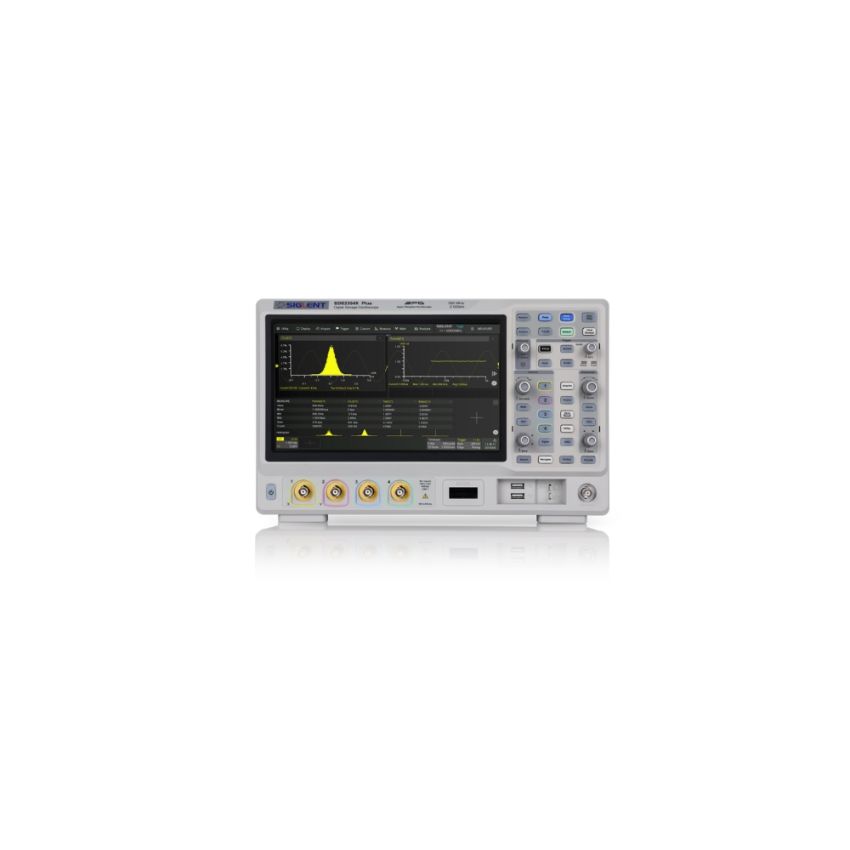

SDS2104X Plus, 4CH Oscilloscope, 100 MHz Bandwidth, 2 GSa/s Sample Rate

The Siglent SDS2104X Plus is a high-performance four-channel digital storage oscilloscope built to meet the demands of modern electronic testing and debugging. Featuring a 100 MHz bandwidth and a real-time sample rate of up to 2 GSa/s in interleaving mode, it offers excellent signal clarity and accuracy. With up to 200 Mpts of memory depth per channel and a fast waveform update rate of up to 500000 waveforms per second in sequence mode, users can analyze complex waveforms with ease. The oscilloscope includes a 10.1 inch capacitive touch screen for intuitive operation, a digital trigger system, and serial bus decoding for common protocols. Optional upgrades include mixed signal analysis, built-in waveform generator, and power analysis capability.

Key Features

• Four analog input channels plus external trigger support
• 100 MHz bandwidth standard, with optional software upgrade
• Real-time sampling up to 2 GSa/s in interleaving mode
• Deep memory up to 200 Mpts per channel
• Waveform update rate up to 500000 waveforms per second
• Supports standard serial decoding: I2C, SPI, UART, CAN, LIN
