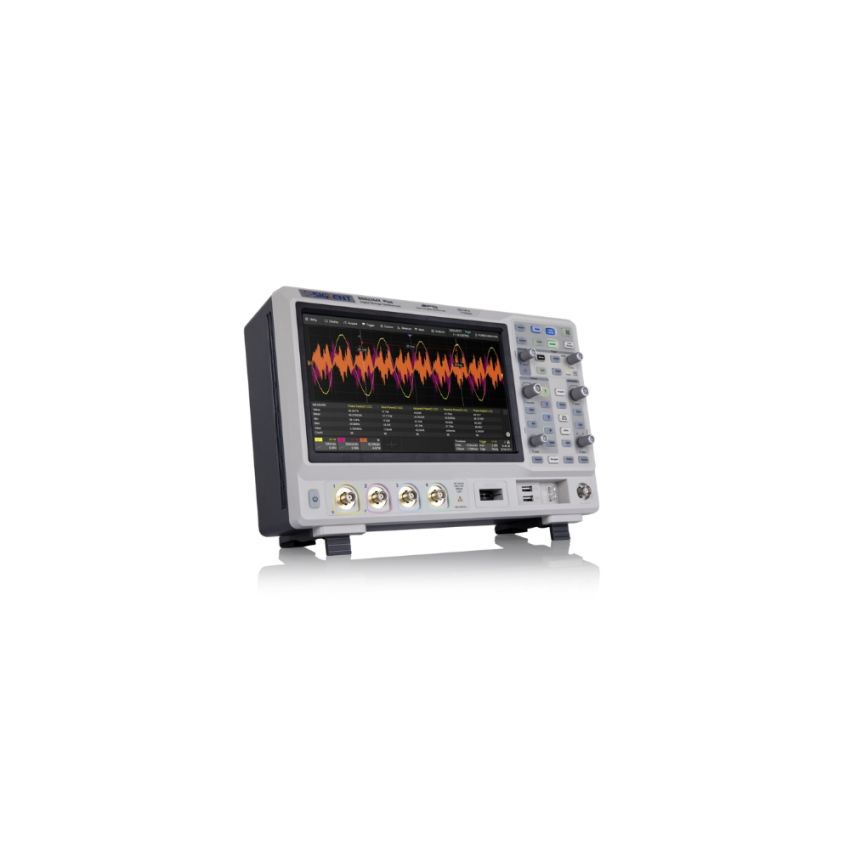

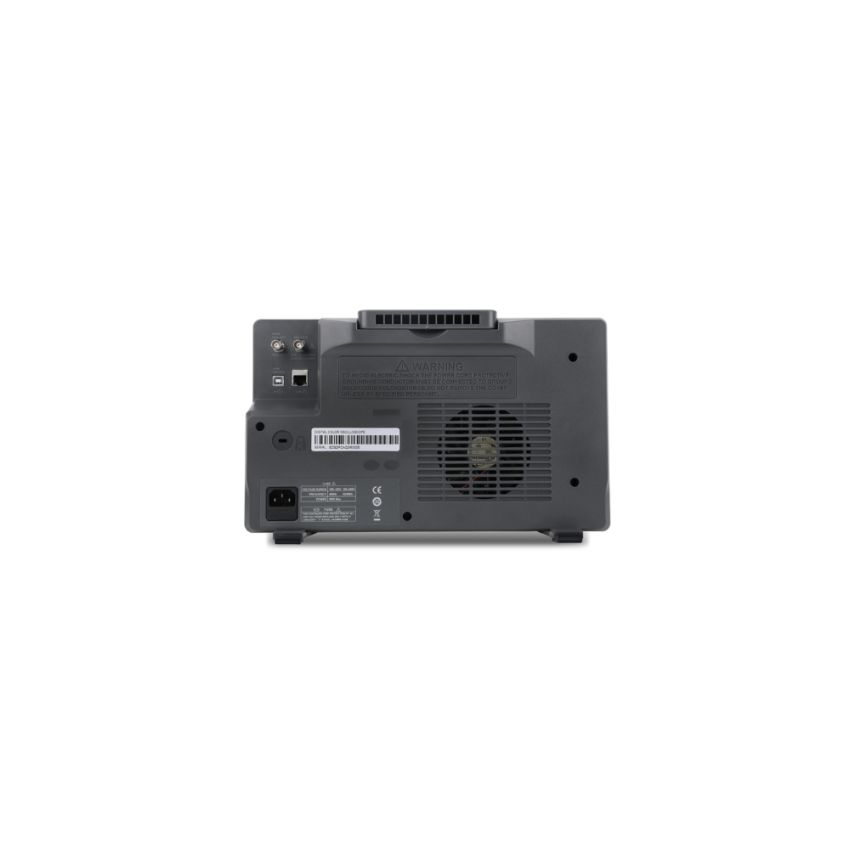

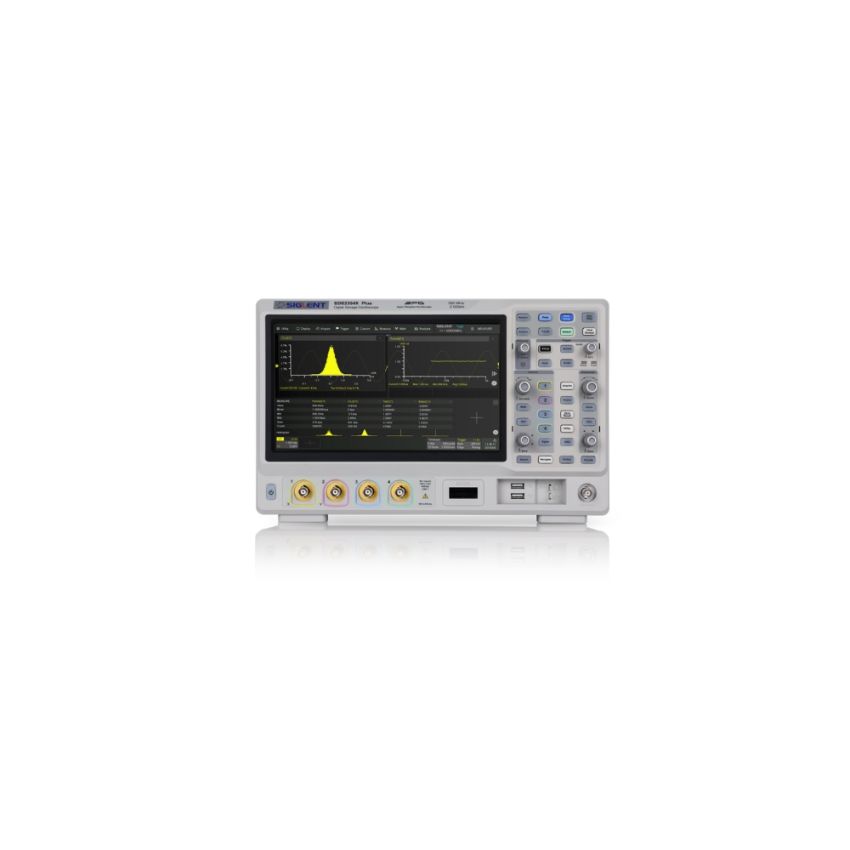

SDS2204X Plus, 4CH Oscilloscope, 200 MHz Bandwidth, 2 GSa/s Sample Rate

The Siglent SDS2204X Plus is a four channel high performance digital storage oscilloscope offering a standard bandwidth of 200 MHz and a maximum real time sample rate of 2 GSa per second in interleaving mode. It is designed for engineers who require reliable and accurate signal analysis with deep memory capability of up to 200 Mpts per channel. With advanced SPO technology, 10 bit acquisition mode, and a waveform capture rate of up to 500000 waveforms per second in sequence mode, it delivers excellent signal fidelity and responsiveness. The oscilloscope includes a large 10.1 inch capacitive touch screen with intuitive interface, advanced triggering functions, and standard serial protocol decoding. It is upgradeable to include mixed signal capability, built in waveform generator, and power analysis tools for versatile testing applications.

Key Features

• Four analog input channels with external trigger support
• 200 MHz analog bandwidth standard with optional bandwidth upgrades
• Real time sampling rate up to 2 GSa per second in interleaving mode
• Deep memory depth of 200 Mpts per channel for extended signal recording
• High waveform capture rate up to 500000 waveforms per second
• Standard decoding for I2C SPI UART CAN and LIN protocols
