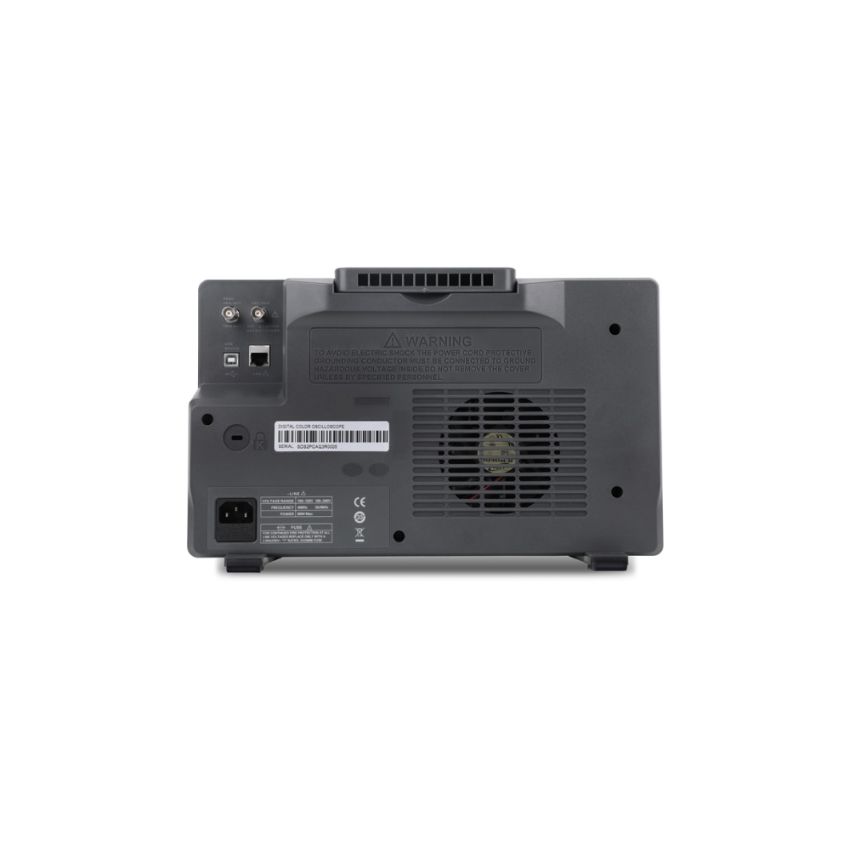

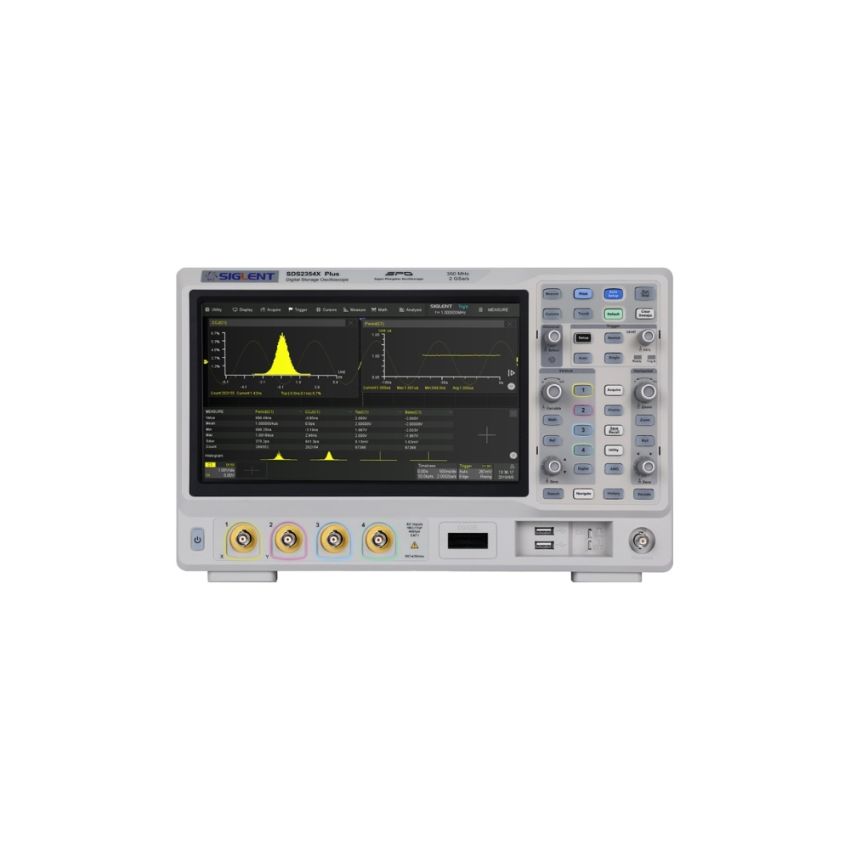

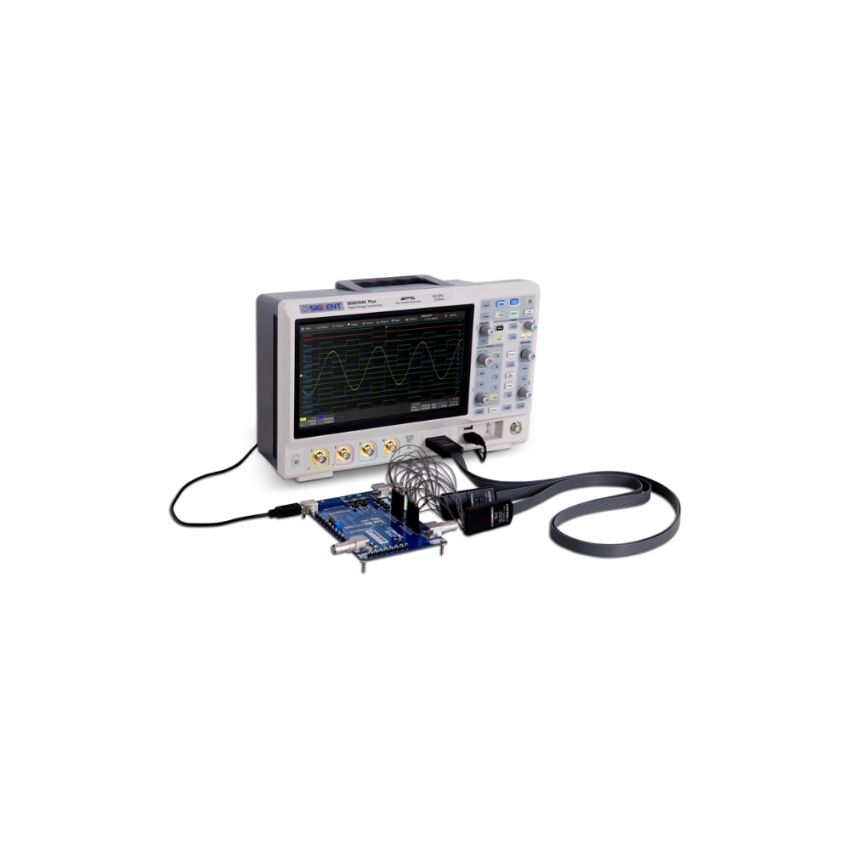

SDS2354X Plus, 4CH Oscilloscope, 350 MHz Bandwidth, 2 GSa/s Sample Rate

The Siglent SDS2354X Plus is a high-performance four-channel digital storage oscilloscope designed for advanced signal analysis. It offers a standard bandwidth of 350 MHz, with an optional upgrade to 500 MHz, and a real-time sample rate of up to 2 GSa/s in interleaving mode. The oscilloscope features a memory depth of up to 200 Mpts per channel, enabling detailed waveform capture over extended periods. It supports a waveform capture rate of up to 120,000 waveforms per second in normal mode and up to 500,000 waveforms per second in sequence mode. The 10.1-inch capacitive touch screen provides an intuitive user interface, and the oscilloscope includes standard serial bus triggering and decoding for protocols such as I2C, SPI, UART/RS232, CAN, and LIN. Optional upgrades include mixed-signal analysis with 16 digital channels and a built-in 50 MHz waveform generator.

Key Features

• Four analog input channels plus external trigger support
• 350 MHz bandwidth standard, upgradeable to 500 MHz
• Real-time sampling rate up to 2 GSa/s in interleaving mode
• Memory depth up to 200 Mpts per channel
• Waveform capture rate up to 120,000 waveforms per second in normal mode
• Standard serial bus triggering and decoding for I2C, SPI, UART/RS232, CAN, and LIN
