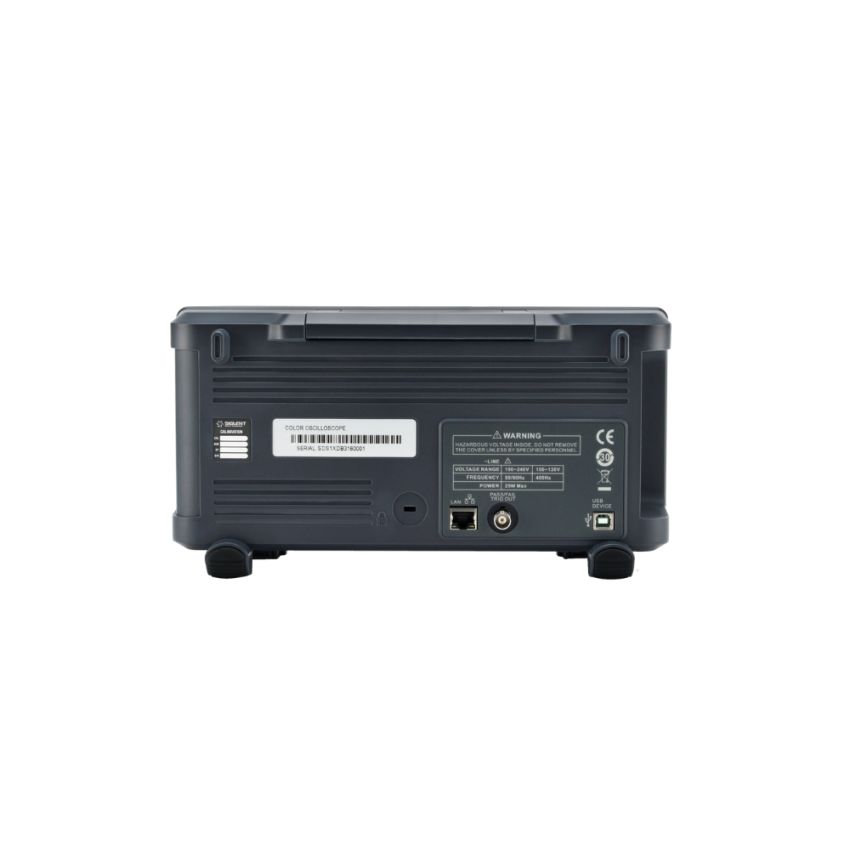

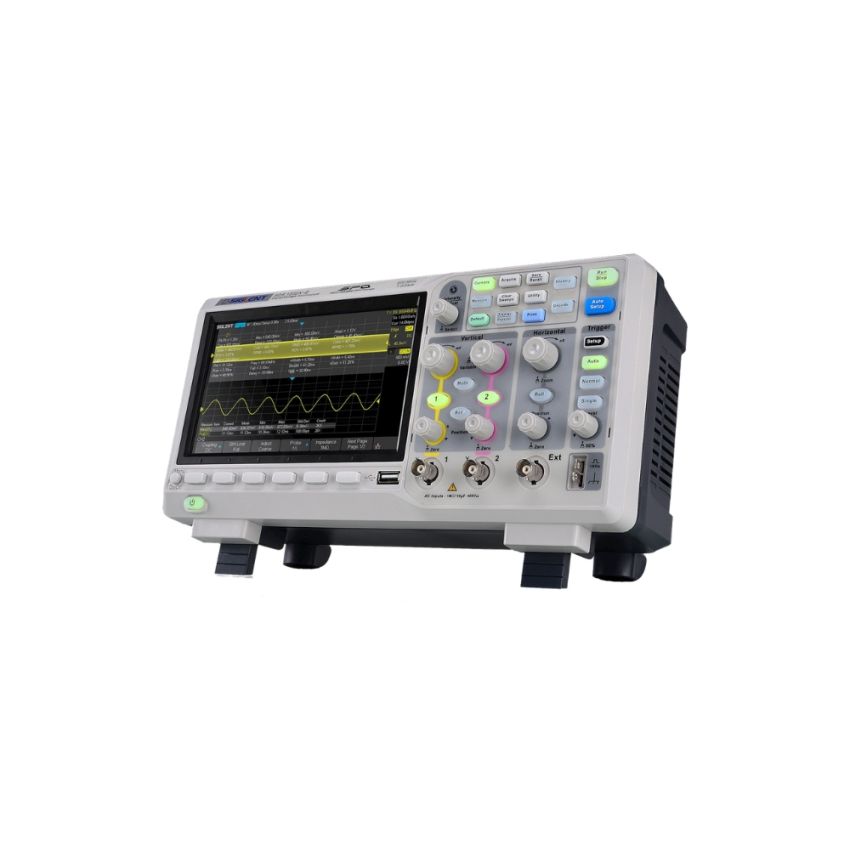

SDS1202X-E, 200 MHz, 2-Channel Digital Oscilloscope

The Siglent SDS1202X-E is a 200 MHz bandwidth, 2-channel digital oscilloscope designed for precision measurements in electronics and embedded systems development. It offers a real-time sampling rate of 1 GSa/s and a standard memory depth of 14 Mpts, enabling detailed waveform analysis. The oscilloscope features a 7-inch TFT-LCD display with 256-level intensity grading and color temperature modes, enhancing signal visualization. Standard serial bus triggering and decoding support for I2C, SPI, UART, RS232, CAN, and LIN protocols make it suitable for automotive and industrial applications. The SDS1202X-E also includes advanced math functions, history waveform recording, and a high-speed pass/fail test capability.

Key Features

• 200 MHz bandwidth with 1 GSa/s real‑time sampling for precise waveform capture
• Deep 14 Mpts memory and high waveform capture rate—100 k wfms/s normal, 400 k wfms/s sequence
• SPO display with 256‑level intensity grading plus color‑temperature visualization
• Comprehensive trigger types including edge, pulse width, window, runts, video and more
• Built-in serial bus decoding and triggering for I2C, SPI, UART, CAN, and LIN protocols
• Advanced waveform analysis with 1 Mpt FFT, history mode, zoom, and pass/fail control
