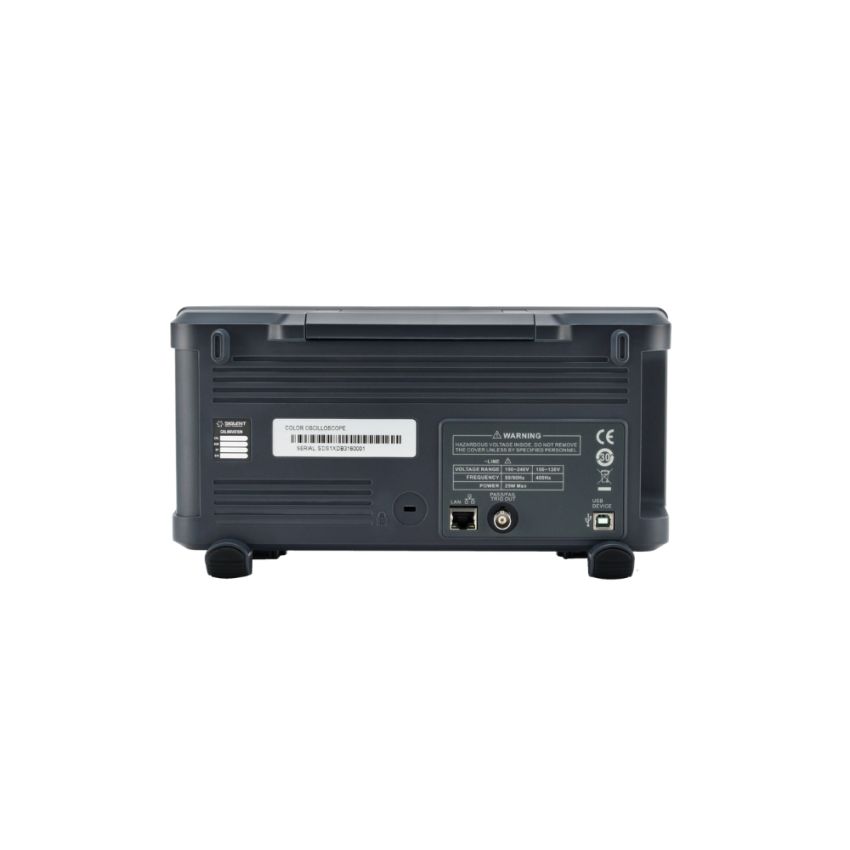

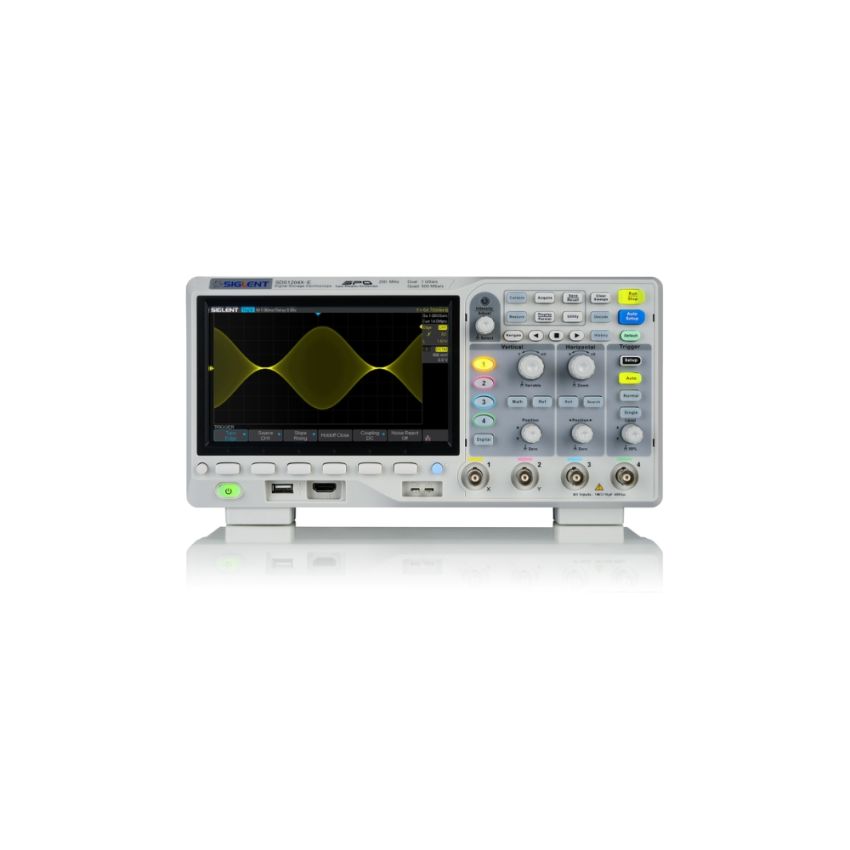

SDS1204X‑E, 4 Channel Oscilloscope, 200 MHz Bandwidth, 1 GSa/s Sample Rate

The Siglent SDS1204X‑E is a high-performance four-channel digital storage oscilloscope that delivers advanced features and reliable signal analysis. With a 200 MHz bandwidth and real-time sampling rates of up to 1 GSa/s (in interleaved mode), it provides precise and detailed waveform captures. The device features a deep memory depth of up to 14 Mpts, allowing for long waveform recording sessions and segmented acquisition for isolating rare events. Its 7-inch TFT LCD with 256-level intensity grading and color temperature display ensures outstanding waveform clarity. Standard features include serial protocol triggering and decoding for I2C, SPI, UART, CAN, and LIN. It also supports FFT analysis, waveform recording, pass/fail testing, and various math operations, making it ideal for research, development, education, and troubleshooting applications.

Key Features

• Four analog channels with external trigger support
• 200 MHz analog bandwidth for accurate high-frequency measurements
• Real-time sample rate of up to 1 GSa/s (interleaved), 500 MSa/s per channel when all active
• Memory depth of up to 14 Mpts per channel for extended data capture
• Standard decoding and triggering for I2C, SPI, UART, CAN, and LIN protocols
• Advanced SPO technology with 256-level intensity grading and color temperature display
