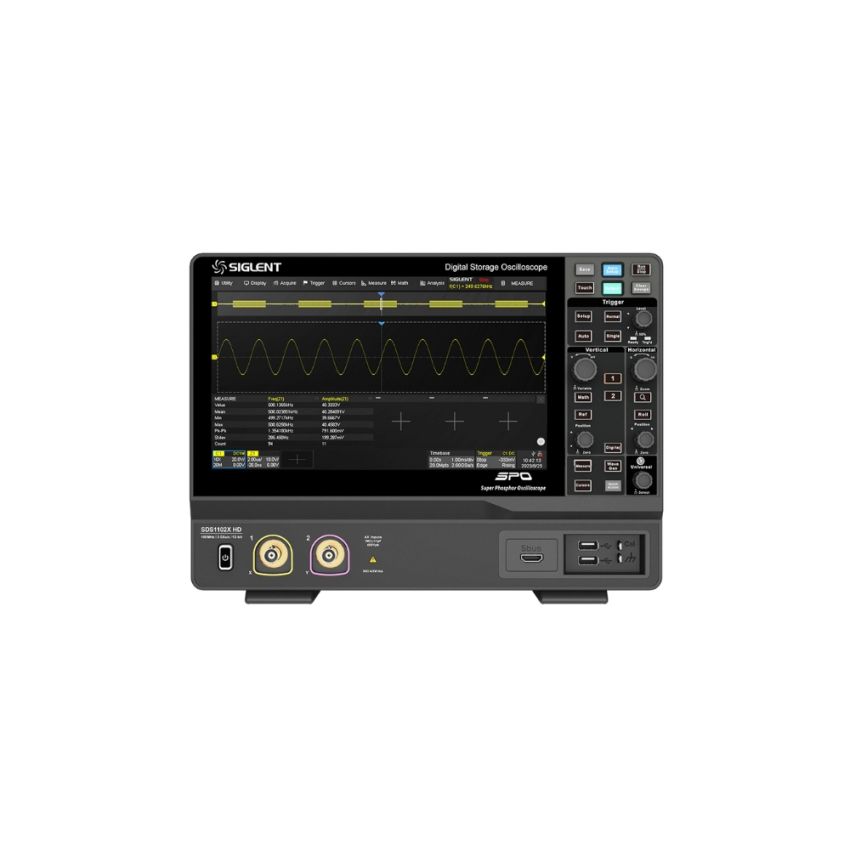

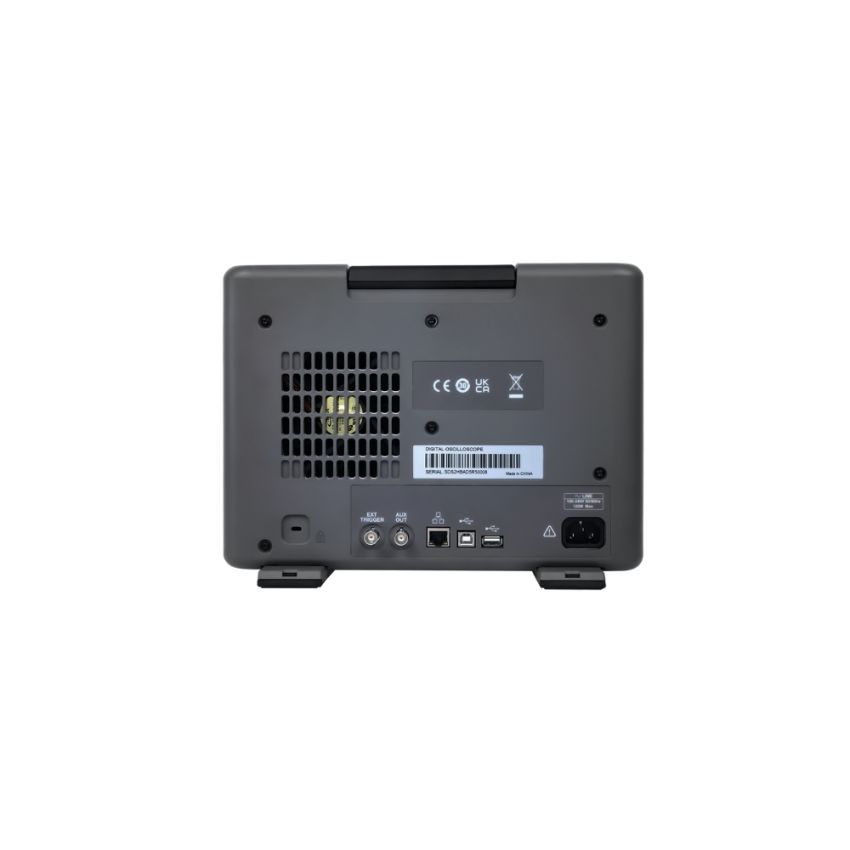

SDS1202X HD, 2 Channel Oscilloscope, 200 MHz Bandwidth, 12 bit Resolution

The Siglent SDS1202X HD is a high-performance digital storage oscilloscope featuring 2 channels with a bandwidth of 200 MHz and 12 bit vertical resolution. Engineered for precision and clarity, it provides a real-time sampling rate of up to 2 GSa per second and supports a memory depth of up to 100 Mpts per channel. This deep memory and high-resolution capability allow users to analyze complex signals with excellent detail and accuracy. Its 10.1 inch capacitive touchscreen display delivers a resolution of 1024 by 600 pixels, offering an intuitive user interface along with advanced visualization modes like intensity grading and color temperature. The oscilloscope also incorporates Siglent's SPO technology, enabling waveform capture rates up to 500000 waveforms per second, facilitating fast detection of infrequent signal anomalies. Serial bus decoding for protocols such as I2C, SPI, UART, CAN, and LIN is supported, with additional decode options available for more advanced standards.

Key Features

• Two channel input with optional external trigger support
• 200 MHz analog bandwidth with high resolution 12 bit ADC
• Real time sample rate of up to 2 GSa per second per channel
• 100 Mpts memory depth for capturing long signal sequences
• Waveform update rate up to 500000 waveforms per second using SPO
• Built-in decoding for I2C, SPI, UART, CAN, and LIN communication protocols
