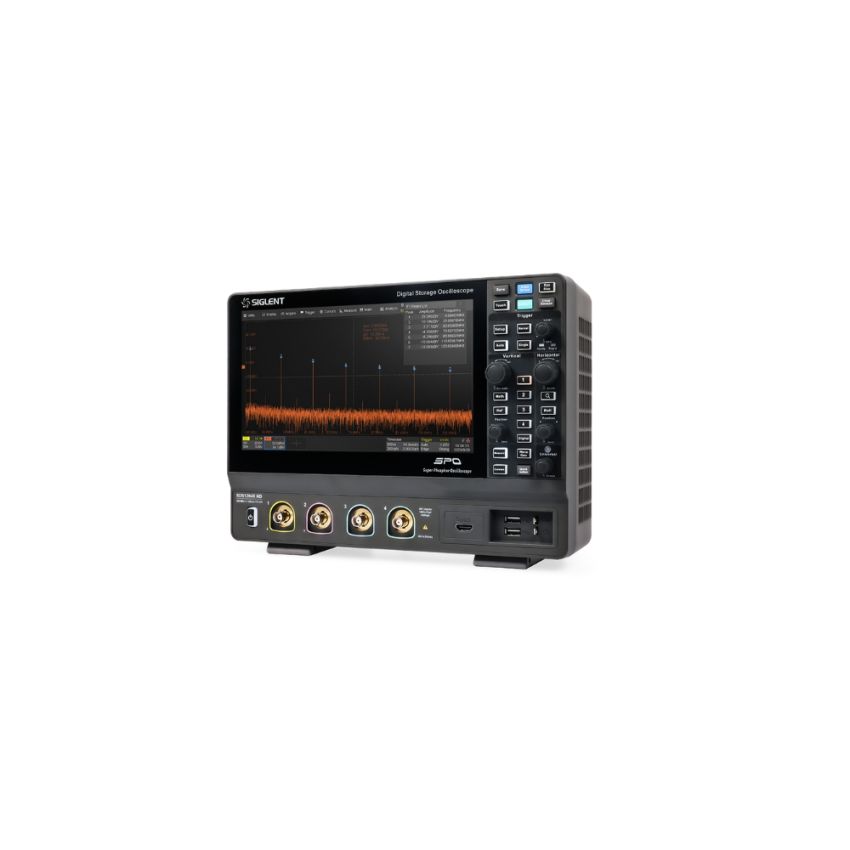

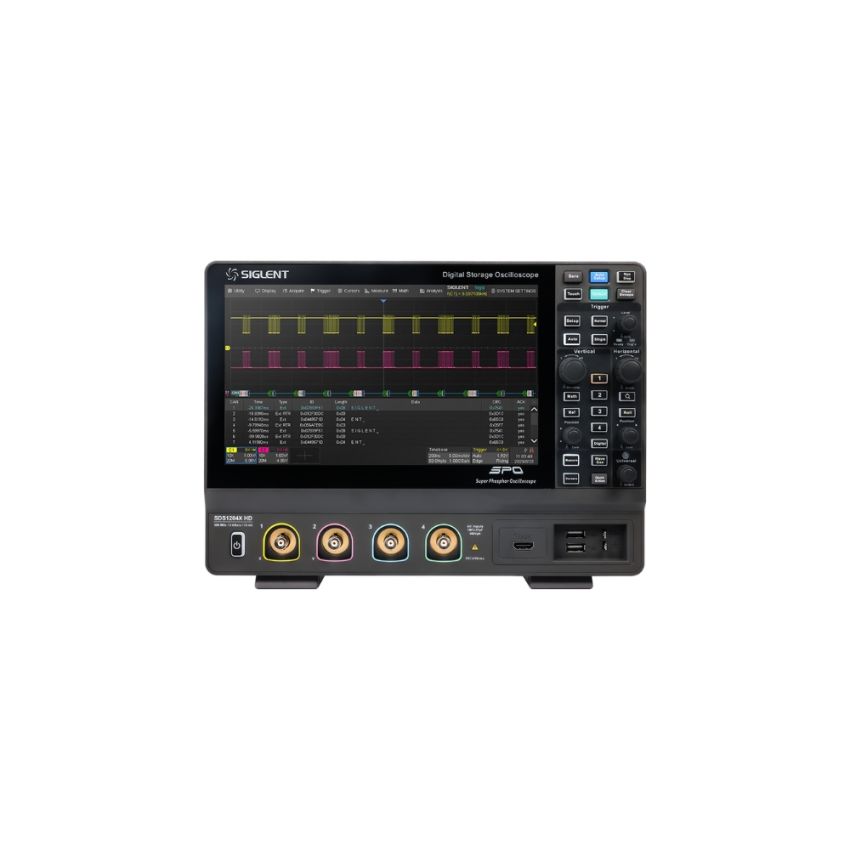

SDS1204X HD, 4 Channel Oscilloscope, 200 MHz Bandwidth, 12 bit Resolution

The Siglent SDS1204X HD is a high-precision 4-channel digital oscilloscope featuring a 200 MHz bandwidth and advanced 12 bit vertical resolution for detailed and accurate signal analysis. Designed for engineers and professionals, it delivers up to 2 GSa per second real-time sampling in single-channel mode and supports deep memory of up to 100 Mpts per channel, allowing thorough capture and review of long signal sequences.This oscilloscope integrates Siglent's SPO technology, delivering waveform capture rates of up to 120000 waveforms per second in normal mode and up to 500000 waveforms per second in sequence mode. Its 10.1 inch capacitive touchscreen display offers a resolution of 1024 by 600 pixels with intuitive control, color temperature grading, and advanced intensity display features.Equipped with built-in serial decoding for I2C, SPI, UART, CAN, and LIN, and options to add further analysis and decoding features, the SDS1204X HD is a powerful tool for debugging and development in embedded systems, power electronics, and automotive applications.

Key Features

• High-resolution 12 bit ADC for accurate signal detail and reduced noise
• Four independent channels with 200 MHz bandwidth
• 2 GSa per second max sampling rate in interleaved mode
• Deep memory architecture up to 100 Mpts per channel
• Waveform capture rates up to 500000 waveforms per second
• Advanced serial protocol decoding for I2C SPI UART CAN and LIN
