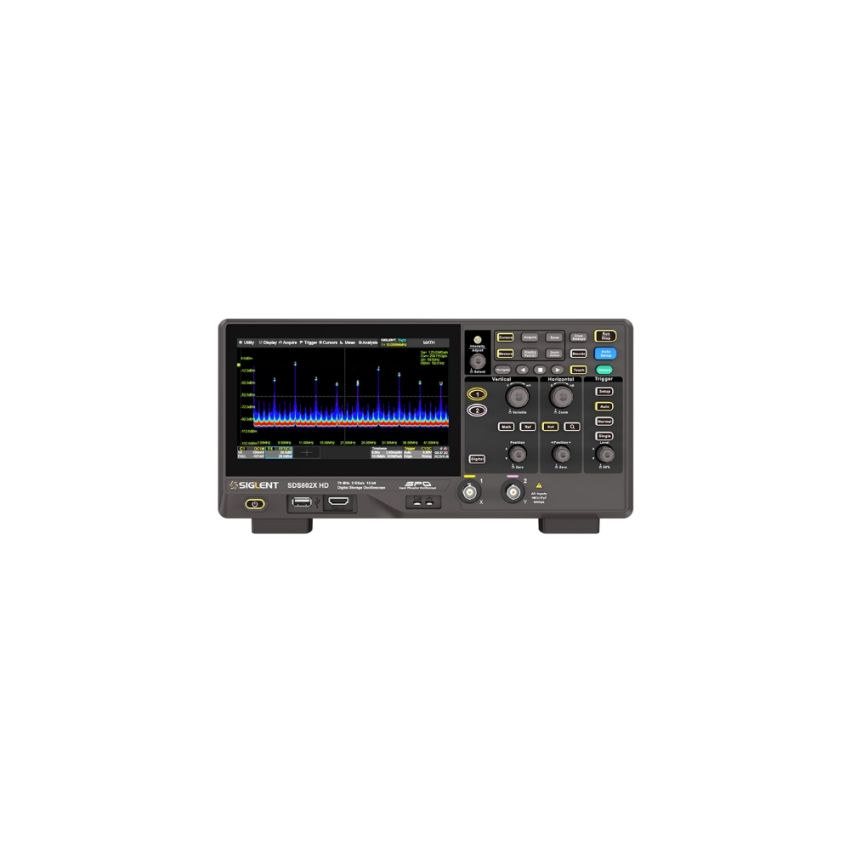

SDS802X HD, 2 CH Oscilloscope, 70 MHz Bandwidth, 2 GSa/s Sample Rate

The Siglent SDS802X HD is a 2 channel digital oscilloscope that delivers 12 bit resolution for superior signal accuracy and clarity. With a bandwidth of 70 MHz and a maximum real time sampling rate of 2 GSa per second in single channel mode, this model is designed for precision in waveform capture and analysis. Each channel supports a memory depth of 50 Mpts, enabling users to capture longer signal durations without sacrificing detail.This oscilloscope is equipped with a 7 inch capacitive touchscreen display featuring 1024 by 600 pixel resolution, providing an intuitive user experience. The unit supports waveform update rates up to 80000 waveforms per second in normal mode and up to 500000 in sequence mode, ensuring clear visibility of signal anomalies. Additionally, it includes advanced trigger and decode functions for protocols such as I2C, SPI, UART, CAN, and LIN. Designed for engineers working in embedded systems, education, and industrial diagnostics, the SDS802X HD is a compact yet powerful test solution.

Key Features

• Two channel input with 12 bit high resolution analog to digital conversion
• 70 MHz bandwidth suitable for low frequency and embedded signal analysis
• Up to 2 GSa per second real time sampling rate in single channel mode
• 50 Mpts memory depth per channel for extended waveform recording
• Fast waveform capture rates up to 500000 waveforms per second
• Built in serial bus decoding for I2C SPI UART CAN and LIN protocols
