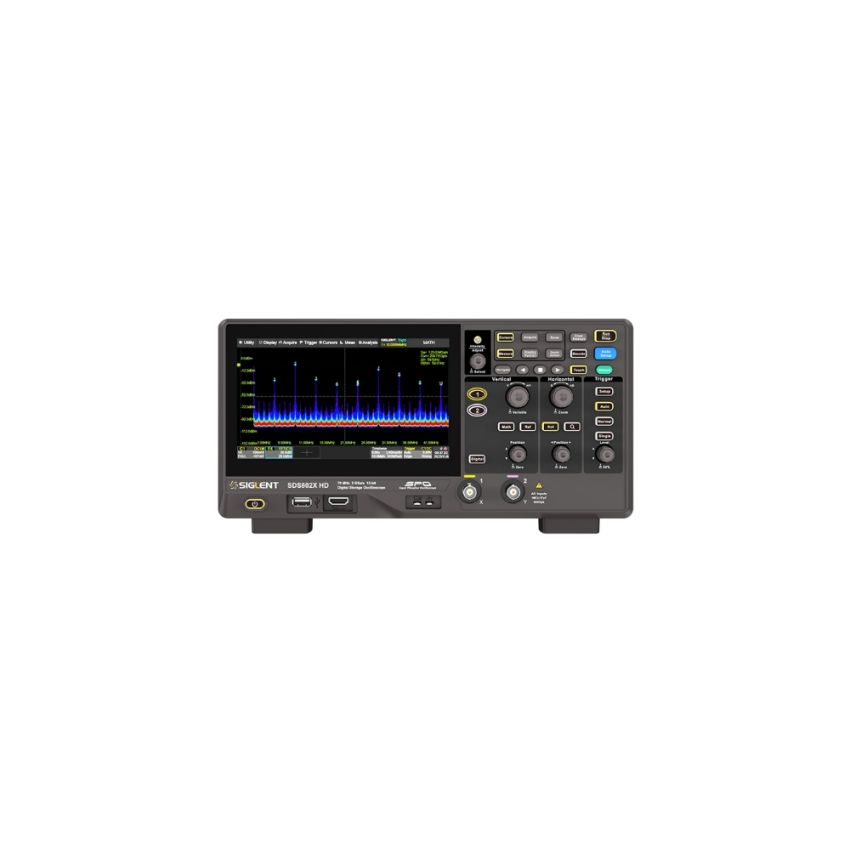

SDS812X HD, 2 CH Oscilloscope, 100 MHz Bandwidth, 12 bit Resolution

The Siglent SDS812X HD is a high-resolution 2-channel digital oscilloscope delivering 100 MHz analog bandwidth and 12-bit vertical resolution for superior signal clarity and measurement precision. It supports a real-time sampling rate of up to 2 GSa/s in single-channel mode and 1 GSa/s per channel in dual-channel mode. With a maximum memory depth of 50 Mpts in single-channel mode or 25 Mpts per channel in dual-channel mode, this instrument provides extensive waveform retention.Utilizing SPO display technology, the scope achieves waveform update rates up to 120,000 wfm/s in normal mode and up to 500,000 wfm/s in sequence mode. The large 7-inch capacitive touchscreen (1024 × 600 resolution) supports multi-touch gestures and mouse/keyboard input. Standard features include serial bus triggering and decoding for I2C, SPI, UART, CAN, and LIN protocols. Optional mixed-signal (16 digital channels), power analysis, and a 25 MHz USB waveform generator are also available. It is ideal for mixed-signal debugging, embedded testing, and power electronics development.

Key Features

• Supports two analog channels with external trigger input
• 100 MHz analog bandwidth complemented by high-fidelity 12-bit ADC resolution
• Real-time sampling up to 2 GSa/s in single-channel mode; 1 GSa/s per channel in dual-channel mode
• Record length up to 50 Mpts (single-channel) and 25 Mpts per channel (dual-channel)
• SPO-based waveform update rate up to 120,000 wfm/s (normal) and 500,000 wfm/s (sequence mode)
• Standard serial bus triggering and decoding for I2C, SPI, UART, CAN, and LIN
