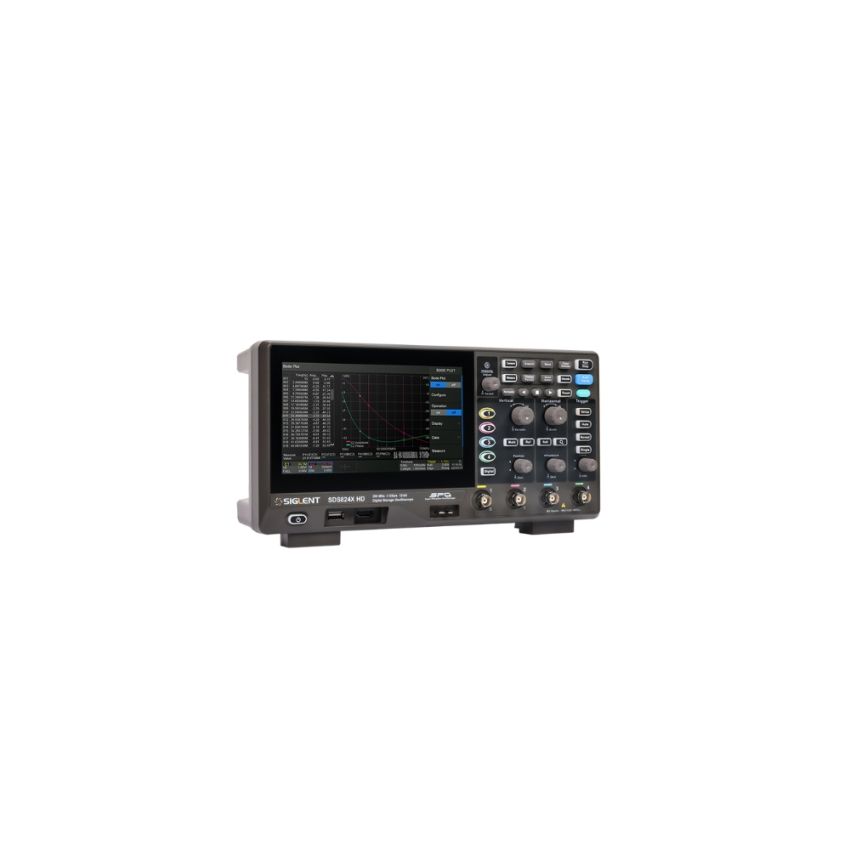

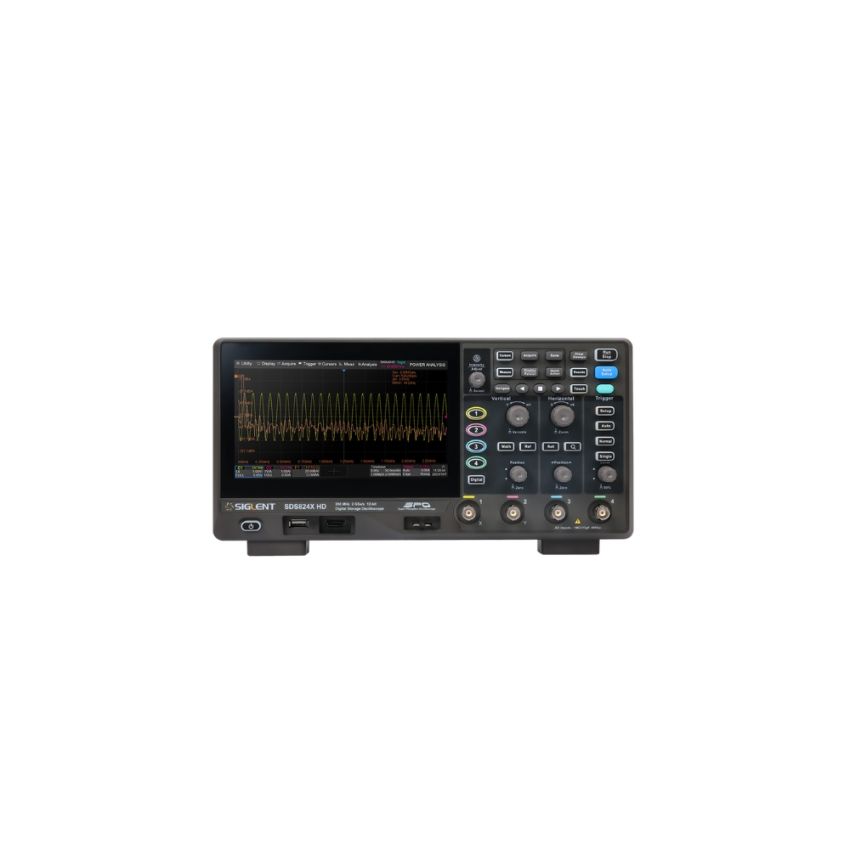

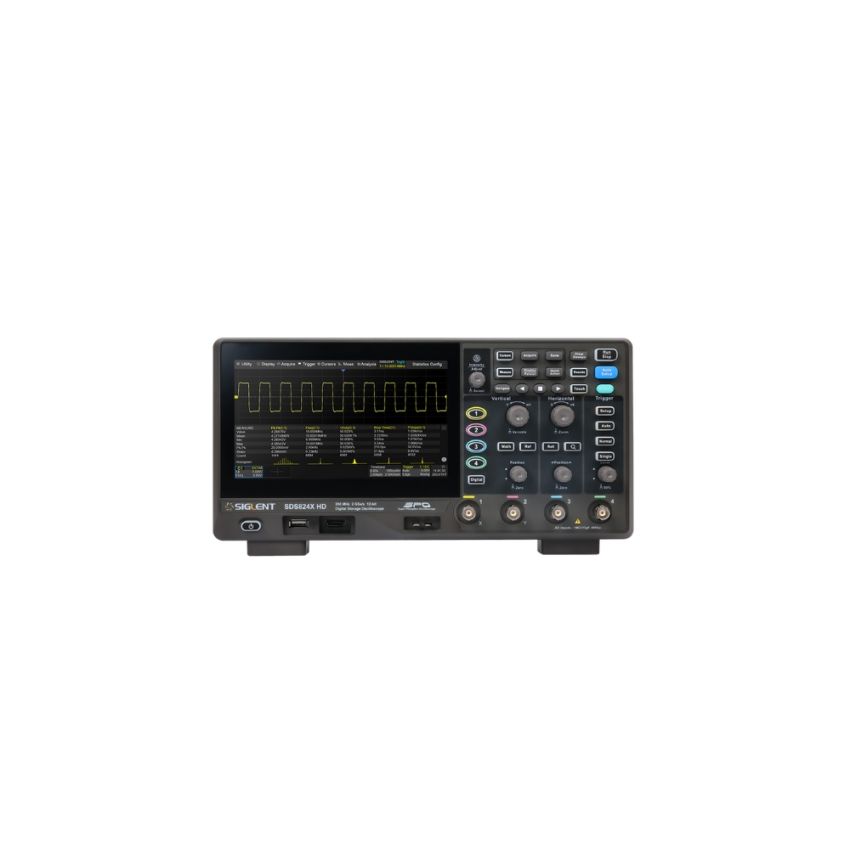

SDS814X HD, 4 CH Oscilloscope, 100 MHz Bandwidth, 12-bit Resolution

The Siglent SDS814X HD is a high-resolution 4-channel digital oscilloscope featuring 100 MHz analog bandwidth and 12-bit vertical resolution for enhanced signal fidelity. It offers a real-time sampling rate of up to 2 GSa/s in single-channel mode, 1 GSa/s per channel in dual-channel mode, and 500 MSa/s per channel in full 4-channel mode. The oscilloscope provides a maximum memory depth of 50 Mpts per channel in single-channel mode, 25 Mpts per channel in dual-channel mode, and 10 Mpts per channel in 4-channel mode. Utilizing Siglent's SPO technology, it achieves waveform capture rates up to 120,000 wfm/s in normal mode and up to 500,000 wfm/s in sequence mode. The 7-inch capacitive touchscreen (1024 × 600 resolution) supports intuitive control and visibility. Standard features include serial bus triggering and decoding for I²C, SPI, UART, CAN, and LIN protocols. Optional upgrades include a 16-channel logic analyzer and a 25 MHz waveform generator.

Key Features

• Four analog input channels with external trigger support
• 100 MHz analog bandwidth with high-fidelity 12-bit ADC
• Real-time sampling up to 2 GSa/s in single-channel mode; 1 GSa/s per channel in dual-channel mode; 500 MSa/s per channel in 4-channel mode
• Memory depth up to 50 Mpts per channel in single-channel mode; 25 Mpts per channel in dual-channel mode; 10 Mpts per channel in 4-channel mode
• Waveform capture rate up to 120,000 wfm/s in normal mode; up to 500,000 wfm/s in sequence mode
• Built-in serial bus triggering and decoding for I²C, SPI, UART, CAN, and LIN protocols
