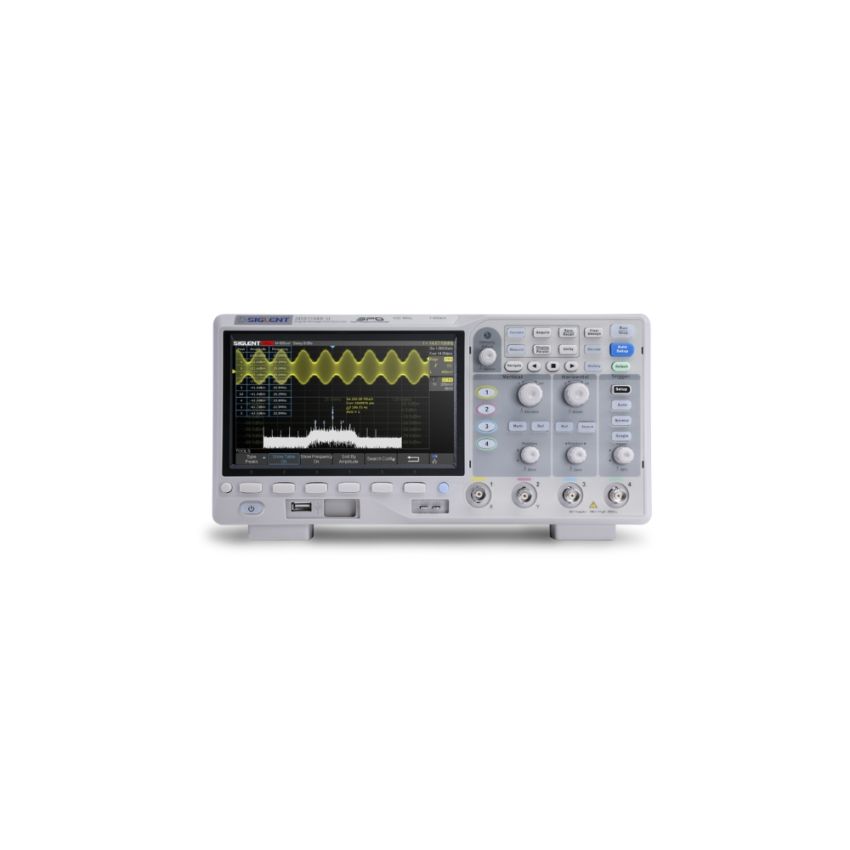

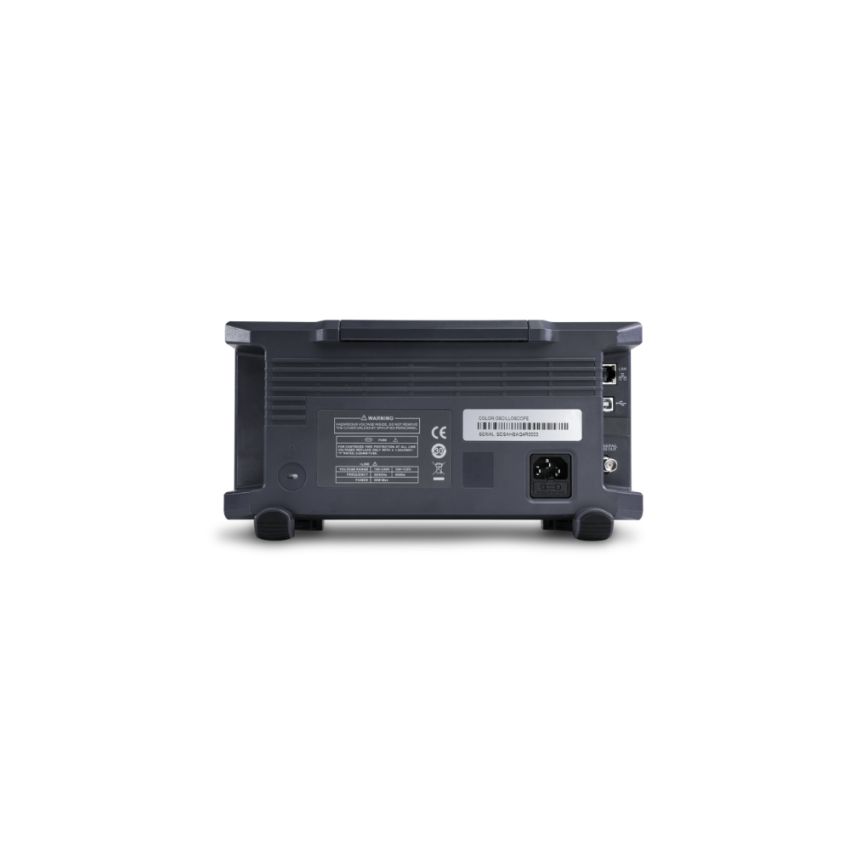

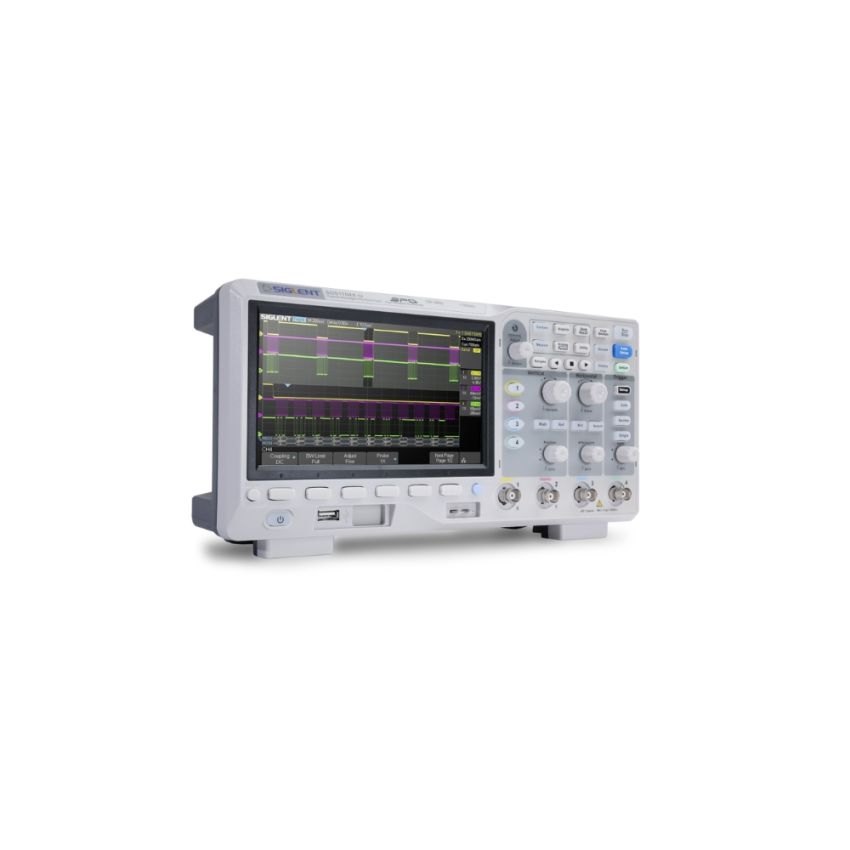

SDS1104X-U, 4 CH Oscilloscope, 100 MHz Bandwidth

The Siglent SDS1104X-U is a 4-channel digital oscilloscope offering a 100 MHz bandwidth and a real-time sampling rate of up to 1 GSa/s (single channel). It features a maximum memory depth of 14 Mpts per channel, enabling detailed waveform capture. The oscilloscope employs Siglent's Super Phosphor Oscilloscope (SPO) technology, providing excellent signal fidelity and performance. It includes a digital trigger system with high sensitivity and low jitter, and supports a waveform capture rate of up to 400,000 frames/sec in sequence mode. The 7-inch TFT-LCD display supports 256-level intensity grading and color temperature display modes. Standard features include serial bus triggering and decoding for I²C, SPI, UART, CAN, and LIN protocols.

Key Features

• 100 MHz analog bandwidth
• Real-time sampling rate up to 1 GSa/s (single channel)
• Maximum memory depth of 14 Mpts per channel
• Waveform capture rate up to 400,000 frames/sec in sequence mode
• 7-inch TFT-LCD display with 256-level intensity grading and color temperature display modes
• Serial bus triggering and decoding for I²C, SPI, UART, CAN, and LIN protocols
