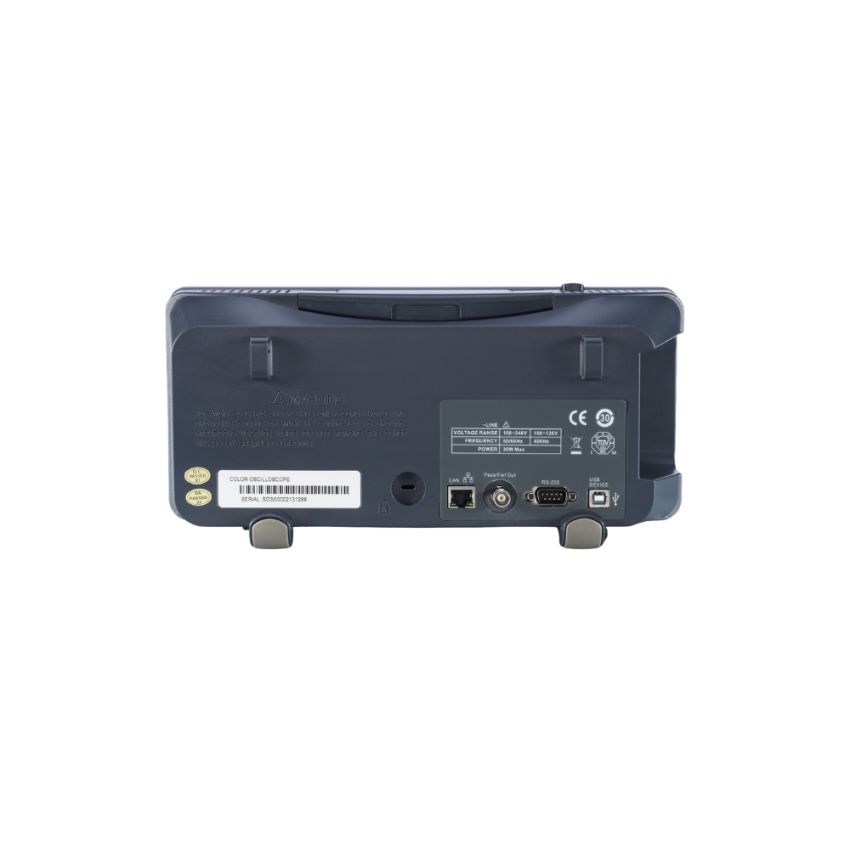

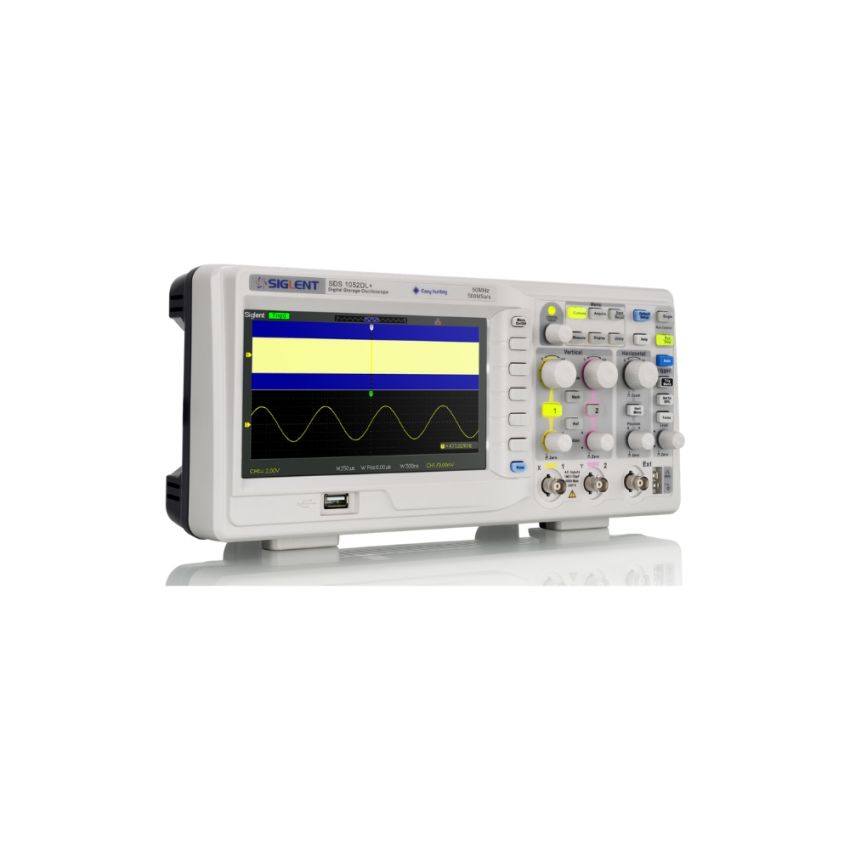

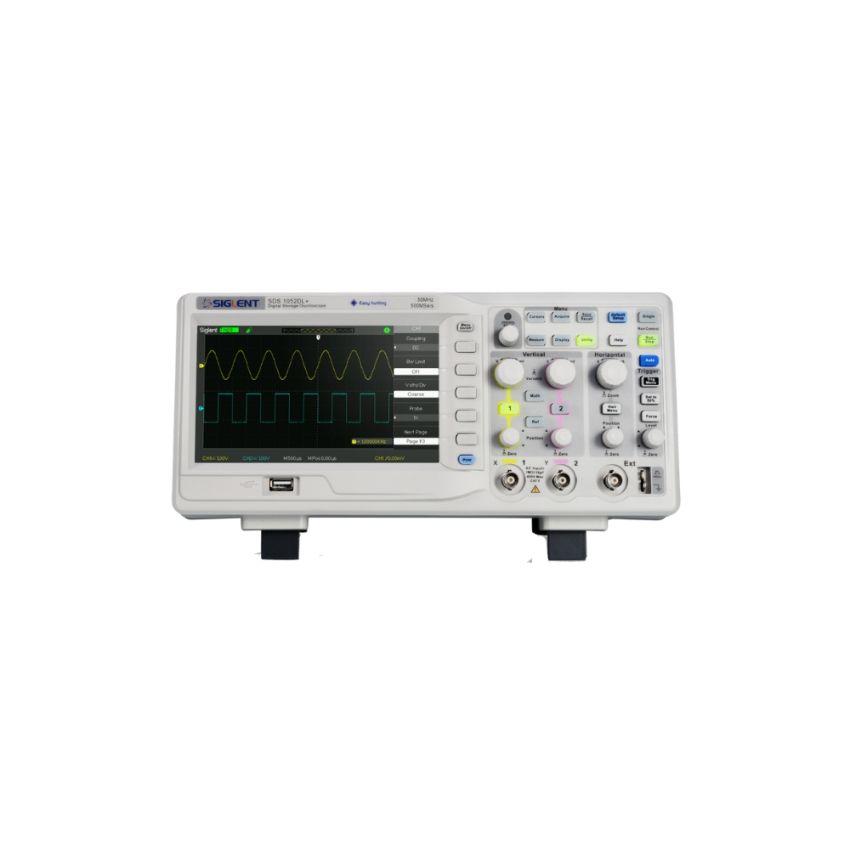

SDS1052DL+, 2 CH Oscilloscope, 50 MHz Bandwidth

The Siglent SDS1052DL+ is a 2-channel digital oscilloscope offering a 50 MHz bandwidth and a real-time sampling rate of up to 500 MSa/s. It features a maximum memory depth of 32 Kpts per channel, enabling detailed waveform analysis. The oscilloscope employs a 7-inch TFT-LCD display with 800 × 480 resolution, providing clear visualization of waveforms. It supports various trigger types, including Edge, Pulse, Video, Slope, and Alternate, and offers multiple mathematical functions such as addition, subtraction, multiplication, division, and FFT. The device also includes a 6-digit frequency counter and supports USBTMC protocol and SCPI commands for remote control.

Key Features

• 50 MHz analog bandwidth with 500 MSa/s sampling ensures accurate signal capture
• Deep 32 kpts memory depth supports longer acquisitions with high detail
• Versatile triggering: edge, pulse, slope, video, and alternate modes for complex signals
• Integrated FFT, math operations, and digital recorder for advanced waveform analysis
• Multi-interface support: USB Host/Device, LAN via VXI-11, plus pass/fail output
• Intuitive 7‑inch color TFT display with built-in multi-language help and screensaver
