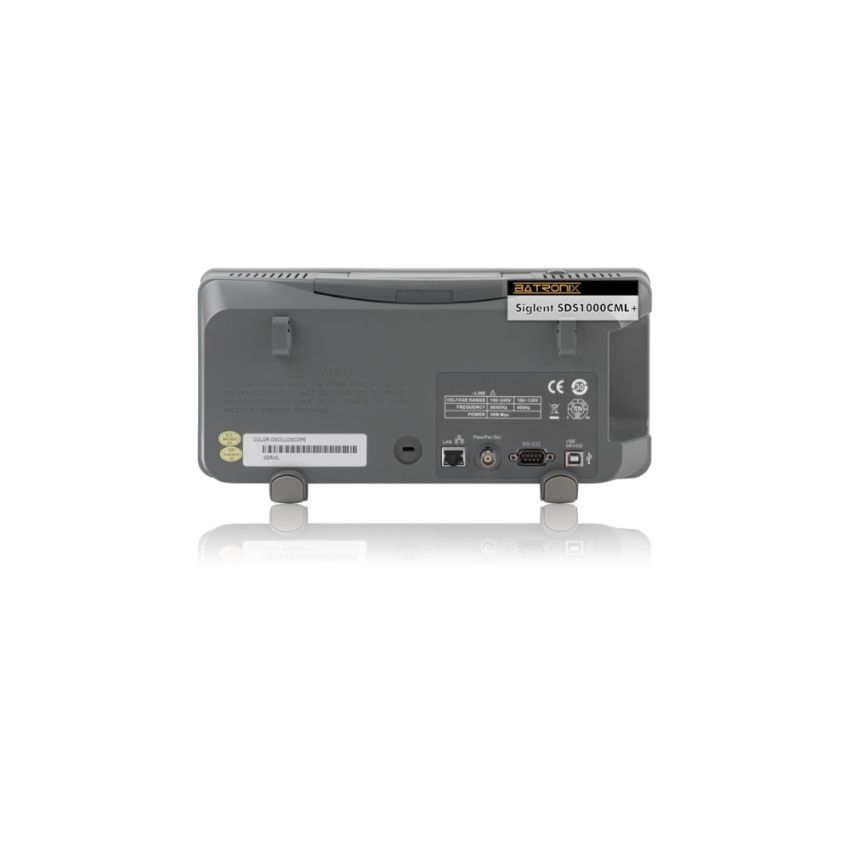

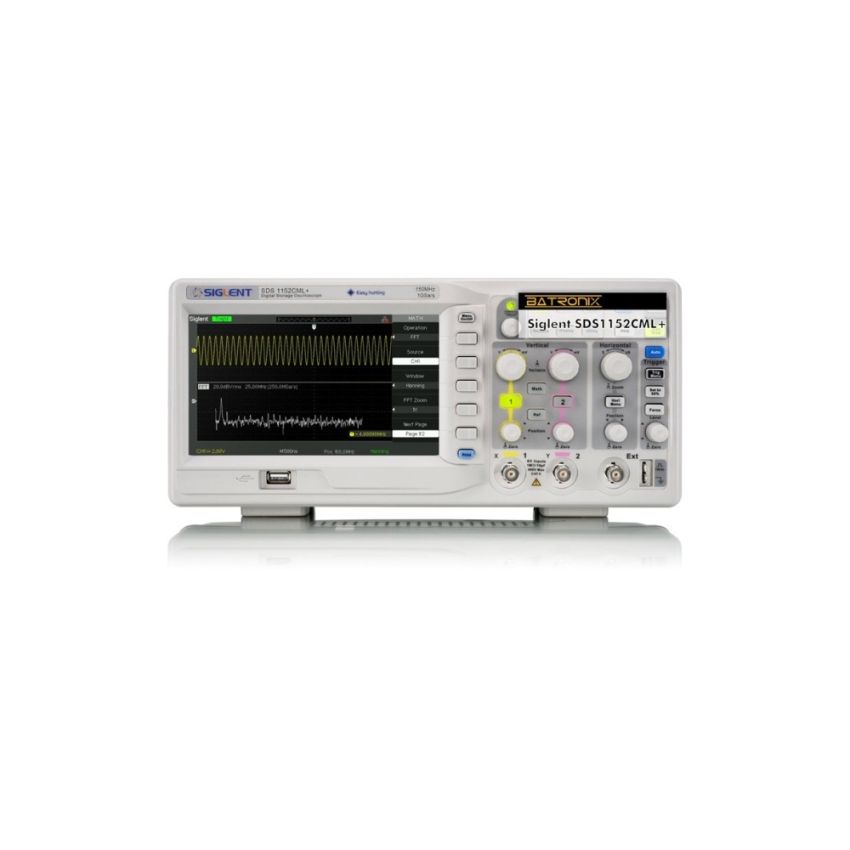

SDS1152CML+, 2 CH Oscilloscope, 150 MHz Bandwidth

The Siglent SDS1152CML+ is a 2-channel digital oscilloscope offering a 150 MHz bandwidth and a real-time sampling rate of up to 1 GSa/s. It features a maximum memory depth of 2 Mpts per channel, enabling detailed waveform analysis. The oscilloscope employs a 7-inch TFT-LCD display with 800 × 480 resolution, providing clear visualization of waveforms. It supports various trigger types, including Edge, Pulse, Video, Slope, and Alternate, and offers multiple mathematical functions such as addition, subtraction, multiplication, division, and FFT. The device also includes a 6-digit frequency counter and supports USBTMC protocol and SCPI commands for remote control.

Key Features

• 150 MHz analog bandwidth
• Real-time sampling rate up to 1 GSa/s
• Memory depth up to 2 Mpts per channel
• 7-inch TFT-LCD display with 800 × 480 resolution
• Trigger types: Edge, Pulse, Video, Slope, Alternate
• Mathematical functions: addition, subtraction, multiplication, division, FFT
